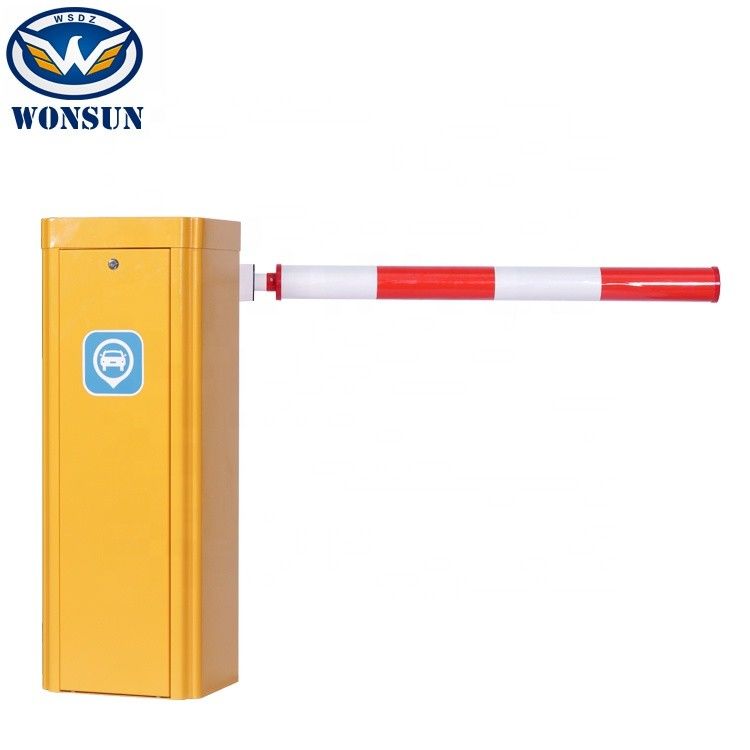

DC24V Servo Motor 400W 3000r/Min IP65 Automatic Parking Barrier Gate

Place of Origin China
Brand Name WONSUN
Certification CE
Model Number DZ-Y860 PRO
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time 3-7 working days after received your payment
Payment Terms T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability 1000 Sets/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Running Speed 0.6s-8s, 0.9s-8s Rated Voltage DC24V
Advantages Speed Adjustable, Bi-direction LEFT Or RIGHT, Encoder Limit, Planetary Gearbox Brand Name -50℃~+85℃
Driving Method Servo Motor Boom Length Max 6 Meters
Arm Type Straight, Folding, Fencing Selling Points Three Springs, Speed Adjustable, Arm Direction Flexible
Material Cold Roll Plate Or Galvanized Plate Color White, Grey, Orange Or Customized
High Light

IP65 Automatic Parking Barrier Gate

,

3000r/Min Parking Barrier Gate

,

400W lifting barrier gate

Leave a Message
Product Description

Servo Motor DC 24V 400W 3000r/Min IP65 automatic parking barrier gate





China 5 Star supplier of barrier gate. If any interest, please contact me freely.

Email: joany@wonsunbarrier.com
Skype: mw-joany
Wecht/Whatsapp: +86 136 3288 6062
DC24V Servo Motor 400W 3000r/Min IP65 Automatic Parking Barrier Gate 0



Functions and Features

1. Open and close speed adjustable

2. Arm direction Left and Right can change easily

3. When power off, manual open and close arm, and lock itself.

4. Wireless remote

5. Photocell I0 port output

6. Loop detector anti-collision I0 output

7. Open and close control input

8. 12V traffic light output

9. Traffic light signal output

10. Open and close limit signal output

11.Counting (fleet) input RS485 communication input

12. 24V battery input port

13. Delay close arm function(1-300 sec. Adjustable)

14. Open and close arm speed deceleration function

15. One-key setting arm type with corresponding speed

16. Arm auto reverse function ( Force adjustable)

17. Anti-collision alarm function (additional sensors and alarms are required)





Technical Parameter List



DC24V Servo Motor 400W 3000r/Min IP65 Automatic Parking Barrier Gate 1



Operation Time and Boom Length Configuration Parameter

Boom Type(meter) Operation Time(seconds) Boom Height(meter)
80*45mm≥2.5m 0.6S 0.83m
80*45mm≥3m 0.9S 0.83m
100*45mm≥4.5m 3S 0.83m
100*45mm≥6m 6S 0.83m
80*45mm 90°boom≥3m 1.8S 0.83m
80*45mm 90°boom≥3.5m 3S 0.83m
80*45mm 90°boom≥5m 6S 0.83m
80*45mm 180°boom≥3m 1.8S 0.83m
80*45mm 180°boom≥4m 6S 0.83m
80*45mm 180°boom≥5m 6S 0.83m
100*45mm 2 fence boom≥3.5m 3S 0.83m, small vertical boom length is 0.8m, landing boom length 0.9m
100*45mm 2 fence boom≥5m 6S 0.83m, small vertical boom length is 0.8m, landing boom length is 0.9m
100*45mm 3 fence boom≥3m 3S 0.83m, small vertical boom length is 1.5m,landing boom length is 1.6m
100*45mm 3 fence boom≥4m 6S 0.83m, small vertical boom length is 1.5m, landing boom length is 1.6m





Tension spring select table



Boom type Boom length Selection spring
Type Spec.(diameter x length)
100*45straight, folding 6m≦L<5m Tension spring 4.5+4.5+4.5
5m≤L≤4.5m 4.5+4.5+4.5
4.5m<L≤3m 4.5+4.5
80*45straight, folding 6m≦L<5m 4.0+4.0+4.0
5m≤L≤4.5m 4.0+4.0+4.0
4.5m<L≤3m 4.0+4.0
2 fence boom 5m≤L≥4m 4.5+5.5+4.5
4m<L≥3m 4.5+4.5+4.5
3 fence boom 4.5m≤L≥4m   4.5+5.5+4.5
4m<L≥3m   4.5+4.5+4.5


(the parameter is based on the company’s arm)

Packing list

Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board   1 piece
Mounting batten   2 piece Fixing the case
Expansion bolt M12*150 4 unit Fixing the case
Case Key   2 unit
Remote controller   2 unit
Instruction   1 piece




FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping

forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
