DC Brushless Motor 140W 1400rpm RS485 Security Boom Barrier
Place of Origin | China |
---|---|
Brand Name | WONSUN |
Certification | CE |
Model Number | DZ-220 |
Minimum Order Quantity | Negotiation |
Price | negotiation |
Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
Delivery Time | 3-7 working days after received your payment |
Payment Terms | T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc., |
Supply Ability | 1000 Sets/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | RS485 Automatic Boom Barrier With DC Brushless Motor Heavy Duty | Working Voltage | DC24V |
---|---|---|---|
Time For Up/Down | 1.5~6s | Length Of Arm | 1m-6m |
Color | Blue, Red,White | Place Of Origin | Shenzhen,China |
High Light | 1400rpm Security Boom Barrier,RS485 Security Boom Barrier,140W Automatic Vehicle Barrier |

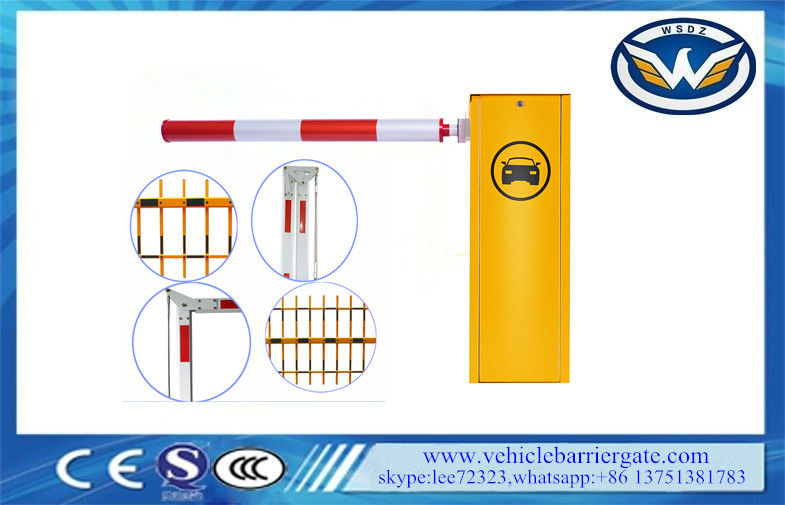

RS485 Automatic Boom Barrier With DC Brushless Motor Heavy Duty
Quick Details:
This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, no clutch design, more reliable quality and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three- link structure, and the landing rod is fast and stable. Easy maintenance and long service life .
Technical parameters
- Hall limit: Automatically detects the limit when power on without debugging, detecting the motor speed at all times, and running at a constant speed.
- Curved triple connecting rod structure, easy to adjust.
- Arm direction quickly interchanged: interchanged according to different directions on the construction site, reduce inventory, and capital pressure.
- Special DC brushless controller: use integrated chip drive, fast processing speed, large memory, powerful function;24v low voltage power supply adapts to global voltage.
Features
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
The parameter for selecting the balance tension spring
Arm Type | The Length of arm | Selection Spring | |
Type
|
Spec.(diameter*Length) | ||
Straight Arm/Folding Arm | 6M≥L>5M | Extension Spring | (ø5.5x280)+(ø4.5x280) |
5M≥L≥4.5M | (ø5.5x280) | ||
4.5M>L≥3M | (ø4.5x280) | ||
Fence Arm | 5M≥L≥4M | (ø6.5x280)+(ø6.5x280) | |
4M>L≥3M | (ø5.5x280)+(ø4.5x280) |
Type Length and Operating Speed Parameters of Bar
Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
Straight arm | 6M≥L>5M | 5S | H=0.83M |
5M≥L≥4.5M | 4S | ||
4.5M>L≥3M | 3S | ||
90 degree folding arm | L≤5M | 5S | |
180 degree folding arm | L≤5M | 5S | |
Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
4M>L≥3M | 3S | ||
Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
Learning Remote control
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
