Access Control System Parking Barrier Gate , Barrier Boom Arm Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-132

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

security boom gate

,

electric boom barrier

Name:
Parking Barrier Gate Access Control System Barrier Boom Arm Gate
Working Voltage:
DC24V
Time For Up/Down:
1.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Name:
Parking Barrier Gate Access Control System Barrier Boom Arm Gate
Working Voltage:
DC24V
Time For Up/Down:
1.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Description
Access Control System Parking Barrier Gate , Barrier Boom Arm Gate

Parking Barrier Gate Access Control System Barrier Boom Arm Gate

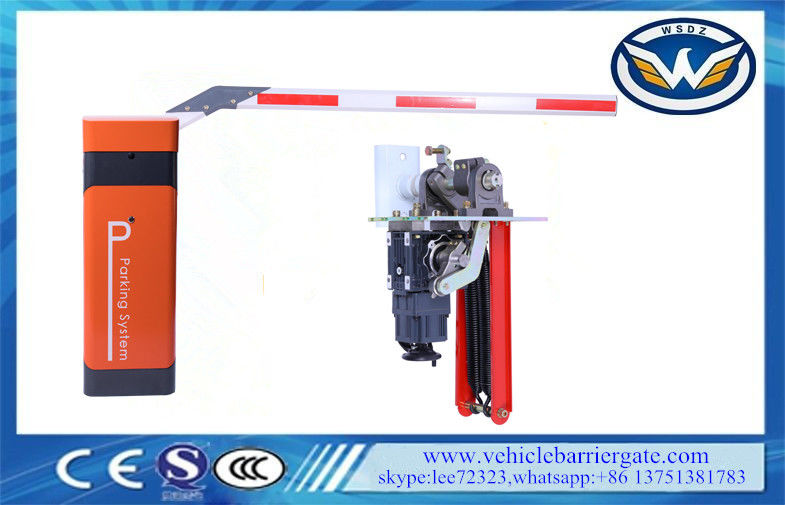

Thank you for purchasing the 2nd generation brushless barrier gate. This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, no clutch design, more reliable quality and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three- link structure, and the landing rod is fast and stable. Easy maintenance and long service life .





Safe

Operation safety with position sensors, physical limiters and integrated photocell



Heavy duty

Consequent movements with 100% heavy duty



Precise

Smooth speed and movement control



Reliable

Easy installation with slotted mounting plate low serice requirement, long product lifetime.





Features

1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)





Working temperature(motor)

-35℃~+85℃
Rated voltage DC24V
Running speed 1.5s-6s
Rated curren 8.58A
Rated power 140W
No-load speed 1850rpm
Rated speed 1400rpm
Output Power 56.8N.m
Relative humidity ≤90%
Remote control distance ≤100M(in the open place)
IP Degree IP44
Place of origin China





Features



1.Mechanical and electrical integration:quickly assembly,easy maintenance.
2.Molding production:highprecision,fast efficiency and guaranteed quality.
3.Worm-gear secondary variable speed transmission:motor wheel design,gate opening by manually when power off,no blocking, no oil leakage,large torque,low noise,can normally operation at the temperature of minus 45 degrees,ets.
4.DC brushless motor desgin:low consumption, high efficiency,no overheat, wide speed adjustment.
5.Hall limit:Automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at constant speed.
6.Curved triple connecting rod structure,easy to adjust
7.Arm direction quickly interchanged:interchanged according to different directions on construction site,reduce inventory and capital pressure.
8.Special DC brushless controller:use integrated chip dirve, fast processing speed, large memory, powerful function;24V low voltage power supply, adapt to global voltage.





Access Control System Parking Barrier Gate , Barrier Boom Arm Gate 0



FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
