Custom Automatic Barrier Gate / DC Brushless Motor Automatic Arm Barrier

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-130

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

car park barrier gate

,

auto barrier gate

Name:
Automatic Barrier Gate DC Brushless Motor Automatic Arm Barrier
Working Voltage:
DC24V
Time For Up/Down:
1.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Name:
Automatic Barrier Gate DC Brushless Motor Automatic Arm Barrier
Working Voltage:
DC24V
Time For Up/Down:
1.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Description
Custom Automatic Barrier Gate / DC Brushless Motor Automatic Arm Barrier

Automatic Barrier Gate DC Brushless Motor Automatic Arm Barrier





Technical parameters


1 Working temperature(motor): -35℃~+85℃
2 Rated voltage: DC24V
3 Running speed:1.5s-8s
4 Rated current: 8.58A
5 Rated power: 140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power: 56.8N.m
9 Relative humidity: ≤90%
10 Remote control distance: ≤100M( in the open place)
11 IP Degree:IP44
42 Max length of arm: 6M





Features

1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)





The parameter for selecting the balance tension spring



Arm Type The Length of arm Selection Spring


Type



Spec.(diameter*Length)
Straight Arm/Folding Arm 6M≥L>5M Extension Spring (ø5.5x280)+(ø4.5x280)
  5M≥L≥4.5M   (ø5.5x280)
  4.5M>L≥3M   (ø4.5x280)
Fence Arm 5M≥L≥4M   (ø6.5x280)+(ø6.5x280)
  4M>L≥3M   (ø5.5x280)+(ø4.5x280)





Product Maintenance



1 Keep the barrier gate clean

2 Check the joints ever month in case of any loose parts.

3 Check the spring elasticity after the barrier gate running 3000 times.

4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.

5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.

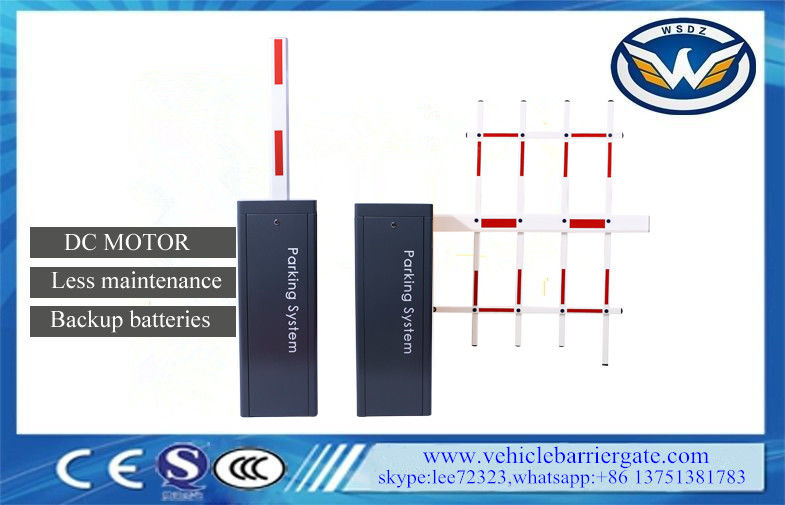

Custom Automatic Barrier Gate / DC Brushless Motor Automatic Arm Barrier 0



FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
