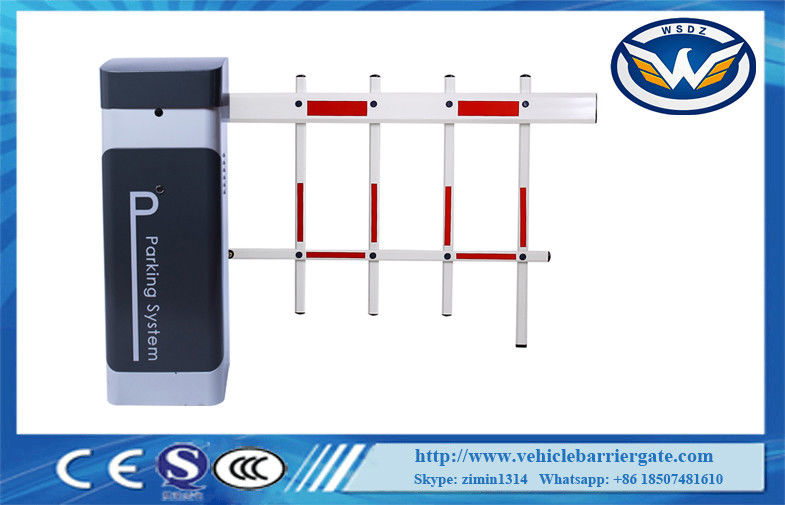

Smart Parking Security Barriers And Gates Remote Control Distance Within 100m

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-132

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

security barriers and gates

,

100m Remote Parking Security Barriers

Running Speed:
1.8s-6s
Color:
Gray, Blue, Red
Advantages:
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit
Motor Type:
DC Motor
IP Degree:
IP44
Product Name:
24V Brushless DC Motor Smart Parking Barrier Gate Speed Adjustable Vehicle Barrier Gate
Running Speed:
1.8s-6s
Color:
Gray, Blue, Red
Advantages:
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit
Motor Type:
DC Motor
IP Degree:
IP44
Product Name:
24V Brushless DC Motor Smart Parking Barrier Gate Speed Adjustable Vehicle Barrier Gate
Description
Smart Parking Security Barriers And Gates Remote Control Distance Within 100m

24V Brushless DC Motor Smart Parking Barrier Gate Speed Adjustable Vehicle Barrier Gate​


Technical parameters

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%



Features


1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 RS485 or CAN network communication interface(no need to install module)
7 Counting interface
8 24V backup battery interface(Can be charged by using solar energy)





FAQ



1-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



2-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



3-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.



4-Can you do OEM service?

We offer below OEM services:

1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.

2)Can print your logo on turnstiles, can customize the retail box packing and other things.


5-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.

4. We have very experienced engineers ,can help you better use it.



Product Maintenance



1 Keep the barrier gate clean

2 Check the joints ever month in case of any loose parts.

3 Check the spring elasticity after the barrier gate running 3000 times.

4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.



Smart Parking Security Barriers And Gates Remote Control Distance Within 100m 0


Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest,

please contact me freely.
