Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Running Speed: |
1.5s-6s |
OEM: |
Support |
Advantages: |
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit |
Motor Type: |
DC |
IP Degree: |
IP44 |
Product Name: |

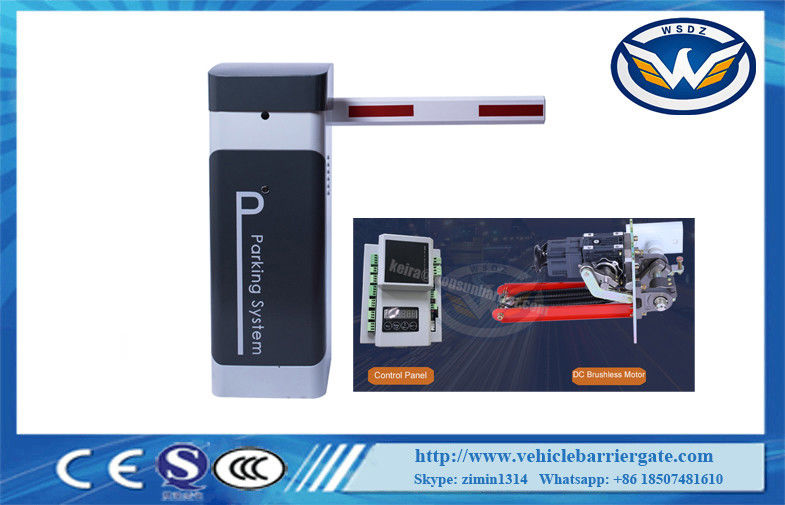

180 Degree Arm Vehicle Barrier Gate DC Brushless 24V Motor Access Control Barrier Gate |
Running Speed: |
1.5s-6s |
OEM: |
Support |
Advantages: |
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit |
Motor Type: |
DC |
IP Degree: |
IP44 |
Product Name: |
180 Degree Arm Vehicle Barrier Gate DC Brushless 24V Motor Access Control Barrier Gate |
Intelligent Speed Adjustable 24V DC Brushless Motor Remote Controlled Car Parking Barriers
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
Features
1 Curved crank arm three- link movement structure, the operation is stable
2 Wireless remote control control open/close
3 Auto reverse function(force adjustable)
4 Infrared photocells connector is available
5 Loop detector connector is available.
6 Well-integrated with car parking system equipment,with wire control(must be switch signal)
7 Auto-delay when closing(adjustable)
8 RS485 or CAN network communication interface(no need to install module)
9 Counting interface
10 24V backup battery interface(Can be charged by using solar energy)
RFQ:
Q: What's the order process?
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
Product Maintenance
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | 1 | piece | ||
| Mounting batten | 2 | piece | Fixing the case | |
| Expansion bolt | M16*150 | 4 | unit | Fixing the case |
| Case Key | 2 | unit | ||
| Remote controller | 2 | unit | ||
| Instruction | 1 | piece |
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest,
please contact me freely.
