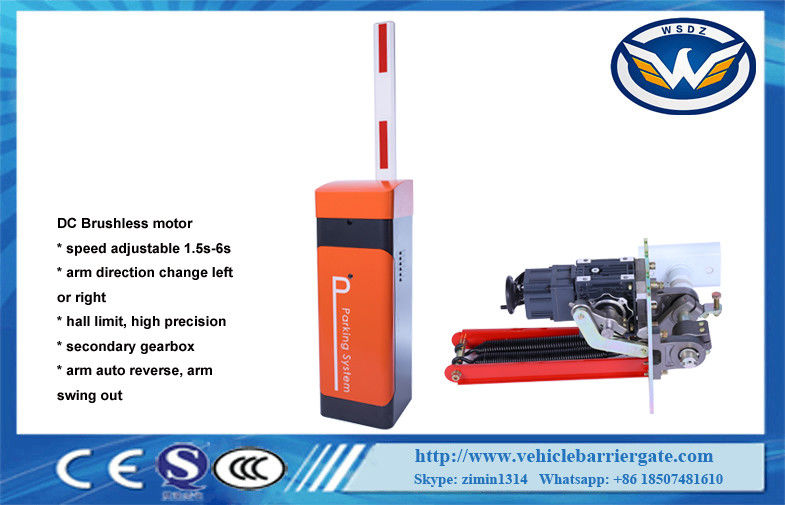

IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery

China IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery supplier
IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery supplier IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery supplier IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery supplier IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery supplier

Large Image :  IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Running Speed: 1.5s-8s Color: Red, Yellow, Grey
Advantages: Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit Backup Battery: Support
IP Degree: IP44 Product Name: Factory Price Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery Gate Barriers

Factory Price Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery Gate Barriers




Technical parameters


Working temperature(motor): -35℃~+85℃
Rated voltage:DC24V
Running speed:1.5s-8s
Rated current:8.58A
Rated power:140W
No-load speed:1850rpm
Rated speed:1400rpm
Output Power:56.8N.m
Relative humidity:≤90%
Remote control distance:≤100M(in the open place)
IP Degree:IP44
Max length of arm:6M




Features


The running speed can be adjusted from 1.5s to 8s
Can be quickly interchanged
Open the barrier gate by motor wheel when power off ,automatically reset after power on
Curved crank arm three- link movement structure, the operation is stable
Wireless remote control control open/close
Auto reverse function(force adjustable)
Infrared photocells connector is available
Loop detector connector is available.
Well-integrated with car parking system equipment,with wire control(must be switch signal)
Connector for traffic light(AC220V,power less than 40W)
Offering dry contact signal for car parking system(COM,NC,NO)
Auto-delay when closing(adjustable)
RS485 or CAN network communication interface(no need to install module)
Counting interface
24V backup battery interface(Can be charged by using solar energy)




Product Maintenance



1 Keep the barrier gate clean

2 Check the joints ever month in case of any loose parts.

3 Check the spring elasticity after the barrier gate running 3000 times.

4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.

5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.





Packing List



Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board   1 piece
Mounting batten   2 piece Fixing the case
Expansion bolt M16*150 4 unit Fixing the case
Case Key   2 unit
Remote controller   2 unit
Instruction   1 piece



 IP44 Degree Automatic Boom Barrier Brushless DC Motor With 12V Backup Battery


Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
