Backup Battery DC Motor Intelligent Barrier Gate Toll Barrier Boom System

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE/ISO/SGS

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiated

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

parking lot gate arms

,

traffic barrier gate

Product Name:
Backup Battery DC Motor Intelligent Barrier Gate ,Toll Gate Barrier Boom System
Motor Rated Power:
50W,max 100W
Running Speed:
0.3s/0.6s/0.9s/2s/4s(adjustable)
Rating Voltage:
AC90~264V,DC12V
Meterial:
2mm Cold-roll Steel Sheet
Housing Size:
342*312*959mm
Remote Control Distance:
≤100m
Keyword:
Intelligent Barrier
Product Name:
Backup Battery DC Motor Intelligent Barrier Gate ,Toll Gate Barrier Boom System
Motor Rated Power:
50W,max 100W
Running Speed:
0.3s/0.6s/0.9s/2s/4s(adjustable)
Rating Voltage:
AC90~264V,DC12V
Meterial:
2mm Cold-roll Steel Sheet
Housing Size:
342*312*959mm
Remote Control Distance:
≤100m
Keyword:
Intelligent Barrier
Description
Backup Battery DC Motor Intelligent Barrier Gate Toll Barrier Boom System

Backup Battery DC Motor Intelligent Barrier gate ,Toll Gate Barrier Boom System


Intelligent Barrier Details:
DZ-138 Model Barrier Gate,is designed using innovative technology and manufactured with precision machinery toguaarantee satisfaction in quality and reliability for years to come.Main features are as belows:

  • ​the speed can be adjusted from 0.6sec to 6sec

  • operation time:0.6S/0.9S/2s/4s/6S for option
  • arm direction can be easily changed to "LEFT" or "RIGHT" side
  • encoder limit (more accuracy,no need to adjust it)
  • more than 10 million operation times(> 10 years)

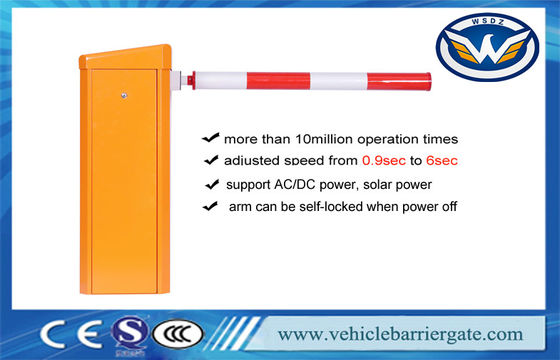

Backup Battery DC Motor Intelligent Barrier Gate Toll Barrier Boom System 0

Our Advantages

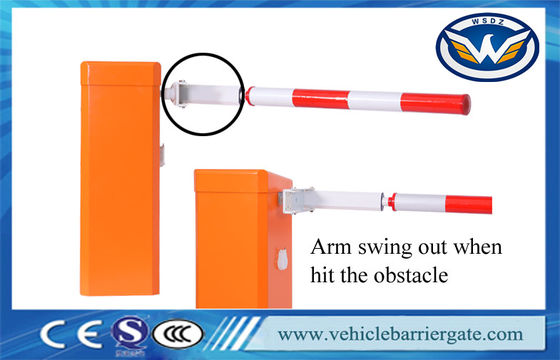

Backup Battery DC Motor Intelligent Barrier Gate Toll Barrier Boom System 1
Backup Battery DC Motor Intelligent Barrier Gate Toll Barrier Boom System 2

Technical Data



1 Product Name Backup Battery DC Motor Intelligent Barrier gate ,Toll Gate Barrier Boom System
2 Rated Volatge AC90V~AC264V,DC24V,50/60HZ
3 Speed Time 0.3s,0.6s,0.9s,2s,4s,6s
4 Motor Power 50W,max 100W
5 Boom Length 2meter to 6meter(max)
6 Working Temperature -40℃~85℃
7 Housing Size 342*312*959*2mm(L*W*H*TH)
8 Lifetime >10 million times or 10 years
9 MTTR <0.5hour
10 MTBF >5 million times
11 Protection Grade IP68
12 Remote Controll Distance ≤100 meter
13 Motor Speed 3000 r/min
14 Relative Humidity ≤90%
15 Running Noise <50dB
16 Net Weight 42.6KG


Features& Functions:


1. Gate automatically open when power off, no clutch design, no need human intervention.
2.Use Single Compression Balance Spring device, good regulation, no noise,  safe and reliable.
3.A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function.
13. Barrier with anti-collision protection function.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface(no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)



Service Items



1 2 year’s free servicing is supplied(not including the arm);

9.2 Lifetime charged servicing is offered;

9.3 Technology servicing is supplied.

The following situations are charged for servicing(or changing):

1) Broken by the wrong installation.

2) Broken by improper voltage.

3) The surfaces of the system destroyed by wrong installation or use.

4) Broken by natural disaster.

5) Overdue.

6) Servicing items out of our promises
