Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot

China Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot supplier
Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot supplier Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot supplier Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot supplier Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot supplier Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot supplier Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot supplier

Large Image :  Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE/ISO/SGS
Model Number: DZ-139

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Product Name: Manually Clucth Traffic Barrier Gate,Remote Controlled Parking Barrier For Underground Parking Lot Input Power: 210W
Running Speed: 1s/2s/4s/6s,adjustable Rating Voltage: AC220V±10%
Meterial: 2mm Cold-roll Steel Sheet Housing Size: 342*312*959mm
Remote Control Distance: ≤100m Keyword: Automatic Barrier Gate

Manually Clucth Traffic Barrier Gate,Remote Controlled Parking Barrier For Underground Parking Lot

Traffic Barrier Details

DZ-139,it's our latest product. Uses the new mold designing technology,mold stamping,die casting technology,with high precision.The unique manually clutch design,boom opening quickly when power off, convenient to use.And the motor can be anti-blocked,oil-tight,arm direction can be quickly interchanged, quality is more reliable.

Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot


Our Advantages
Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot

Technical Parameter

1.Working temperature(motor): -35℃~+85℃
2.Working temperature(control panel): -35℃~+85℃
3. Voltage:220V±10%,50HZ or 110V±10%,60HZ
4. Rated Power:80W,capacitor:9+uF/450W
5. Humidity:≤90%RH
6. Distance of remote control:100M>L≥30M in the open place


Main Functions:


1.The arm direction can be quickly interchanged
2.Open the barrier gate manually when power off,the clutch can be self-locked,and automatically reset when power on.
3.Balance boom running with a motor transmission of cranks and shafts
4.Remote control to operate the barrier gate
5.Auto-reverse when the boom meets obstruction
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-integrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)

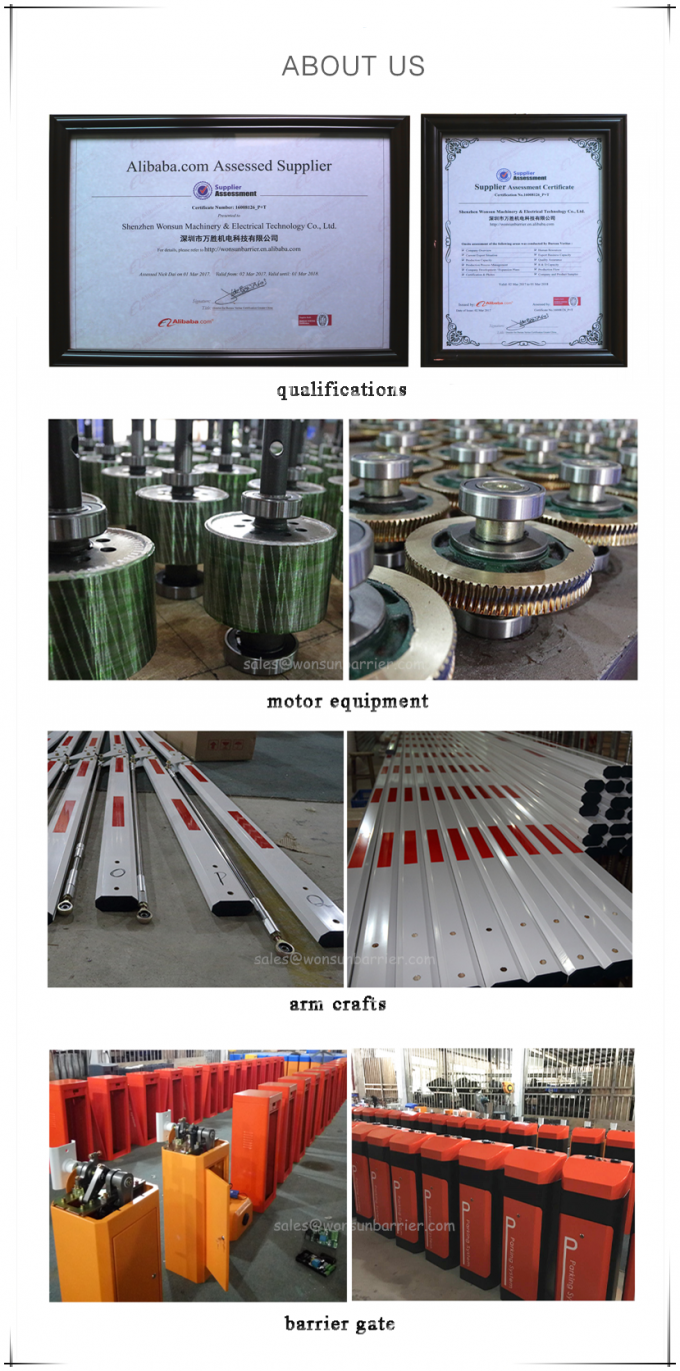

Factory Show
Manually Clucth Traffic Barrier Gate Remote Controlled For Underground Parking Lot

Packing List


Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board   1 piece
Mounting batten   2 piece Fixing the case
Expansion bolt M16*150 4 unit Fixing the case
Case Key   2 unit
Remote controller   2 unit
Instruction   1 piece


RFQ
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.
3.Q: First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
