Speed Adjustable Access Control Barriers And Gates 24VDC Servo Motor IP54

China Speed Adjustable Access Control Barriers And Gates 24VDC Servo Motor IP54 supplier
Speed Adjustable Access Control Barriers And Gates 24VDC Servo Motor IP54 supplier Speed Adjustable Access Control Barriers And Gates 24VDC Servo Motor IP54 supplier Speed Adjustable Access Control Barriers And Gates 24VDC Servo Motor IP54 supplier

Large Image :  Speed Adjustable Access Control Barriers And Gates 24VDC Servo Motor IP54

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: 225usd
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Operation Time: 0.6s/2.5m,0.9s/3m,2s/4m,5s/6m Protection System(IP): 54
Machine Case Size(W*D*H): 342*312*959mm Power Supply: 24/100/240VAC,50/60Hz
Certificate: CE Item Name: Speed Adjustable 24VDC Servo Motor Barrier Gate IP54 Traffic Barrier Gate

Speed Adjustable 24VDC Servo Motor Barrier Gate IP54 Traffic Barrier Gate





DZ-138 traffic barrier gate specifications:


DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor No-load Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55



Functions and Features:

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.

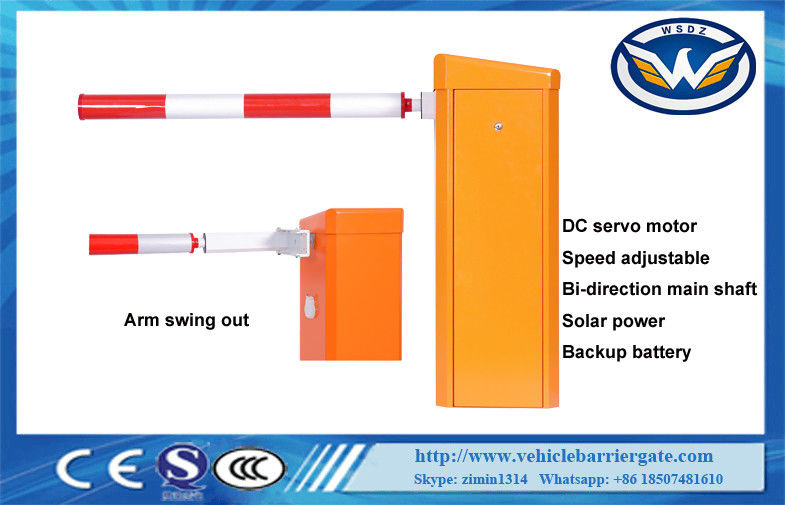

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality



Service Items

1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of

complying with the operating instruction, without the unauthorized maintenance of the parts and the machine

have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from

the date of use for a period of two years or from the date of shipment up to three years including all mechanical

and electronic components other than special consumables.
2.Lifetime charged servicing is offered.
3.Technology servicing is supplied.
*The following situations are charged for servicing (or replacement):
1.Broken by wrong installation;
2.Broken by improper voltage;
3.The surfaces of the system destroyed by wrong installation or use.
4.Broken by natural disaster.
5.Overdue.
6.Servicing items out of the promises.





Interchange Instruction for Arm directions



The product direction can be interchanged, divided into 6 steps.

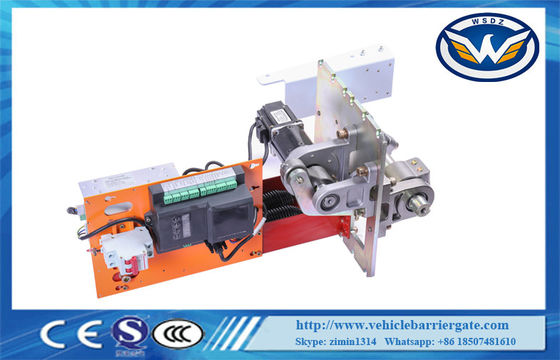

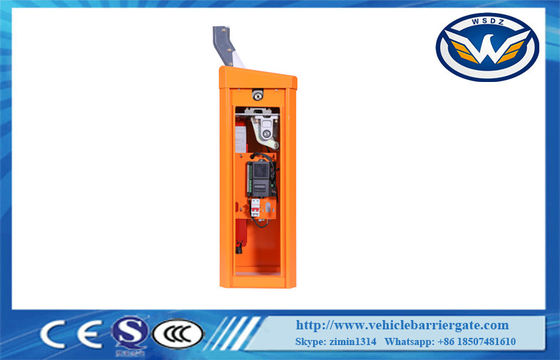

Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;

Step 2: remove the electrical supporting plate from left side to the right side;

Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);

Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);

Step 5: install the boom tray head from the original left to the right side,or the original right to

the lest side;

Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw,

direction interchange is completed, no need to adjust other Settings.





FAQ:

1. When barrier finish closing, why does the arm open itself slowly?
  • the spring is too tight, you need release the spring a little, then test it again.
  • see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
  • reset the balance position and the electrical limit switch.

2. Why does the controller panel operate with "Di Di Di" abnormal noises?

  • As for this, it means the resistance on controller board is broken, if you have professional tools to check,
  • then replace that broken resistance, if not, replace that controller panel.

3. Why does the barrier finish half operation of opening and closing?

  • If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.

4. When barrier closed, why is there a 5 degree angle of inclination?

  • the model is not good, and the gear doesn't fit each other tightly.
  • the barrier didn't adjust well, need to reset.

5. When barrier finish open, but it closes itself without any order control, what's the problem?

  • To check the loop cable first, because the loop cable maybe brokem
  • To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.

6. Why does the arm wave a lot when opening and closing?

  • The spring is very tight
  • The Screw touches the rubber absorption tightly, need to reset again.

7. Rubber linning installation suggestion:

  • It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
  • The place with many vehicles come and go, like shopping center, carpark area.

8. Can you accept OEM/ODM order?

  • Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.

Speed Adjustable Access Control Barriers And Gates 24VDC Servo Motor IP54
