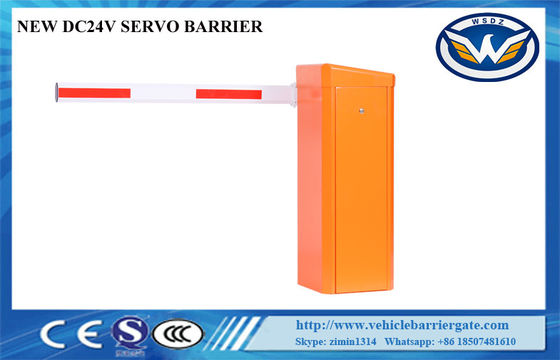

Solar Power Automatic Barrier Gate DC Servo IP54 No Need Human Intervention

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

electric barrier gate

,

car park barrier gate

Operation Time:
0.6s/2.5m,0.9s/3m,2s/4m,5s/6m
Protection System(IP):
54
Operating Temperature Range℃:
-45℃~+85℃
Power Supply:
24/100/240VAC,50/60Hz
Running Noise<:
45dB
Item Name:
Solar Power DC Servo Barrier Gate Automatic Barrier Gate IP54
Operation Time:
0.6s/2.5m,0.9s/3m,2s/4m,5s/6m
Protection System(IP):
54
Operating Temperature Range℃:
-45℃~+85℃
Power Supply:
24/100/240VAC,50/60Hz
Running Noise<:
45dB
Item Name:
Solar Power DC Servo Barrier Gate Automatic Barrier Gate IP54
Description
Solar Power Automatic Barrier Gate DC Servo IP54 No Need Human Intervention

Solar Power DC Servo Barrier Gate Automatic Barrier Gate IP54




Quick Details:

1. The gate automatically open when the power is off, no clutch design, no need human intervention
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable
3.Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

The parameter for selecting the balance tension spring


Boom TypeThe Length of BoomSelection Spring

Boom
Type


Spec.(diameter*Length)


Straight Boom/Folding Boom

6M≥L>5MExtension Spring(ø5.5MM*280)+(ø4.5MM*280)
5M≥L≥4.5M(ø5.5MM*280)
4.5M>L≥3M(ø4.5MM*280)
Fence Boom5M≥L≥4M(ø6.5MM*280)+(ø6.5mm*x280)
4M>L≥3M(ø5.5MM*280)+(ø4.5mm*280)

(the parameter is based on the company’s boom)



DZ-138 barrier gate specifications:


DZ-138 barrier gateV06TV09T
Max Boom Length and Diameter2500mm, Ф75mm3000mm, Ф75mm
Open/Close Time0.6sec0.9sec,2.5sec,4.5sec
Power Supply24/100/240VAC,50/60Hz24/100/240VAC,50/60Hz
Power Consumptionmax.150W100w
Machine CaseVarnished 2.0mm steel plateVarnished 2.0mm steel plate
Machine Case Size(W*D*H)342*312*959mm342*312*959mm
Net Weight43kg42.6kg
Operating Temperature Range℃-45℃~+85℃-45℃~+85℃
Driving MethodServo motorServo motor
Protection System(IP)5454
Insulation ClassFF
Relative Humidity≤90%≤90%
Motor No-load Speed3000r/min3000r/min
Remote Control Distance≤100m (open, sunny weather)≤100m (open, sunny weather)
Output Torque1.2N.M*140=160N.M0.86N.M*140=120N.M
Running Noise<45dB45dB
Surface TreatmentOutdoor metal powder electrostatic sprayingOutdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%)100-240 volt100-240 volt
Frequency(Hz)50-6050-60
Max Power Consumption(watt)88
FuseF5AHF5AH
Control Voltage24V DC/max.3000mA24V DC/max.3000mA
Input-end Number88
Open Collector Output Number22
Zero Level Reversal Relay Number33
Operating Temperature Range℃-45℃~+85℃-45℃~+85℃
Protection System(IP)2020
Weight(gram)450gram450gram
Dimensionmm(L-W-H)158*126*55



Functions and Features:

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality




FAQ:
1. When barrier finish closing, why does the arm open itself slowly?

  • the spring is too tight, you need release the spring a little, then test it again.
  • see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
  • reset the balance position and the electrical limit switch.

2. Why does the controller panel operate with "Di Di Di" abnormal noises?

  • As for this, it means the resistance on controller board is broken, if you have professional tools to check,
  • then replace that broken resistance, if not, replace that controller panel.

3. Why does the barrier finish half operation of opening and closing?

  • If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.

4. When barrier closed, why is there a 5 degree angle of inclination?

  • the model is not good, and the gear doesn't fit each other tightly.
  • the barrier didn't adjust well, need to reset.


5. When barrier finish open, but it closes itself without any order control, what's the problem?

  • To check the loop cable first, because the loop cable maybe brokem
  • To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.

6. Why does the arm wave a lot when opening and closing?

  • The spring is very tight
  • The Screw touches the rubber absorption tightly, need to reset again.

7. Rubber linning installation suggestion:

  • It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
  • The place with many vehicles come and go, like shopping center, carpark area.

8. Can you accept OEM/ODM order?

  • Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.

Solar Power Automatic Barrier Gate DC Servo IP54 No Need Human Intervention 0
