Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-139
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
WONSUN New CE Solar Power Automatic Barrier Gate Servo Motor |
Power Supply: |
AC220V,DC24V, |
Voltage: |
AC90V~AC264V,DC24V |
Nose: |
<62dB |
Arm Thickness: |
Aluminum 1.5mm |
MTTR: |
<0.5Hrs |
Name: |
WONSUN New CE Solar Power Automatic Barrier Gate Servo Motor |
Power Supply: |
AC220V,DC24V, |
Voltage: |
AC90V~AC264V,DC24V |
Nose: |
<62dB |
Arm Thickness: |
Aluminum 1.5mm |
MTTR: |
<0.5Hrs |

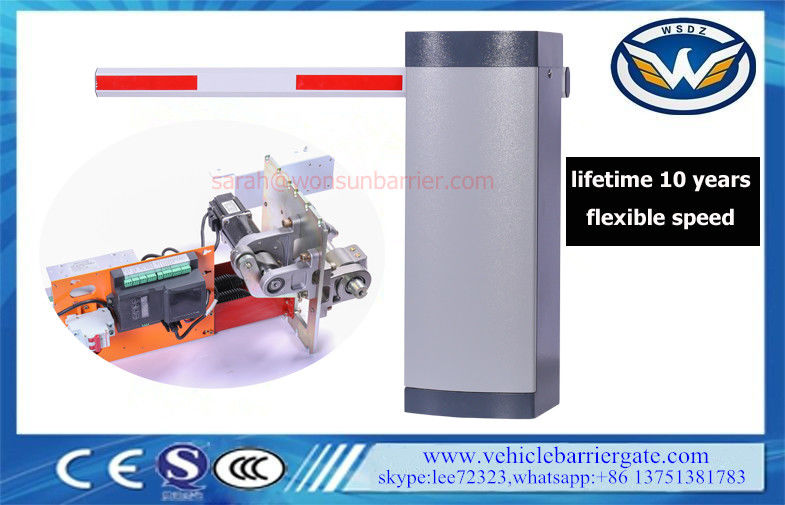

WONSUN New CE Solar Power Automatic Barrier Gate Servo Motor
Quick Details:
servo barrier gate series, which researched developed and manufactured by our company, adopts international advanced technology, mechanical and electrical integrated design. Planetary gear drive, high torque, un-blocked, oil tight, no noise, automatically unlocked when the power is off, with 10 million operation times. The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), adjust to the global voltage, high-speed operation and rapid response, it will not overheat after 24 hours, frequent operation, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automated and intelligent, and the barrier arm open/close is fast and smooth, easy to use and safe.
|
Advanced Features
* Low-power servo motor, truly maintenance-free, high durability and energy saving.
* No position sensor, each stop with the same accuracy. Pair using is fully synchronized.
* No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).
* No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.
* Excellent waterproof, dust-proof performance, the whole product protection grade is IP65.
* Can work with DC24V battery, can be combined with solar energy, wind power, suitable places lack of AC power.
* Boom rise automatically when power off, comply with the fire safety requirements.
* Long time maintenance-free, greatly reducing maintenance costs.
* During the course of the movement without any mechanical impact or shock absorption, the highest reliability, the longest service life.
* Direction exchange is easy.
* Free debugging during production and installation, greatly reduce the maintenance and labor costs. |
Technical Data:
| DZ-138 barrier gate | |
| Max Boom Length and Diameter | 3000mm, Ф75mm |
| Open/Close Time | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz |
| Power Consumption | 100w |
| Machine Case | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm |
| Net Weight | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ |
| Driving Method | Servo motor |
| Protection System(IP) | 54 |
| Insulation Class | F |
| Relative Humidity | ≤90% |
| Motor No-load Speed | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Output Torque | 0.86N.M*140=120N.M |
| Running Noise＜ | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying |
Optional Specifications
| Optionals and accessories |
|
Service Items
1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instruction, without the unauthorized maintenance of the parts and the machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.
2.Lifetime charged servicing is offered.
3.Technology servicing is supplied.
*The following situations are charged for servicing (or replacement):
1.Broken by wrong installation;
2.Broken by improper voltage;
3.The surfaces of the system destroyed by wrong installation or use.
4.Broken by natural disaster.
5.Overdue.
6.Servicing items out of the promises.
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.
3.Q: First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
