Payment & Shipping Terms:
|Product Name:||RFID Parking System Vehicle Barrier Gate With 6 Meters Aluminum Alloy Barrier Arm||Motor Rated Power:||50W,max 100W|
|Running Speed:||0.3s/0.6s/0.9s/2s/4s||Rating Voltage:||AC90~264V,DC12V|
|Meterial:||2mm Cold-roll Steel Sheet||Housing Size:||342*312*959mm|
|Remote Control Distance:||≤100m||Keyword:||Vehicle Barrier Gate|

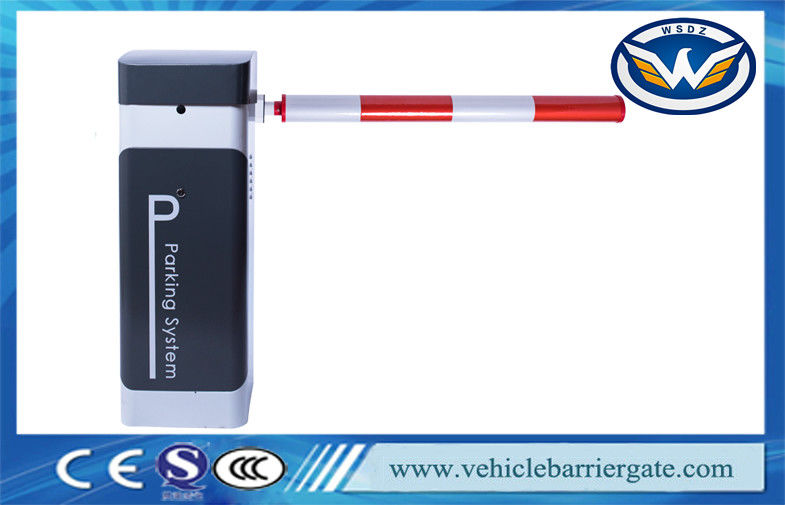

RFID Parking System Vehicle Barrier Gate With 6 Meters Aluminum Alloy Barrier Arm
Barrier Gate controller -- variable frequency type, is the enhanced barrier control which speed can be adjusted .Adopting full remote control mode, with the open /stop/close wire control interface ,counting interface, special encoder limit interface, loop detector interface, infrared interface, open limit,close limit output interface, communication interface.The remote control code is the learning code,and receiver module adopts external superheterodyne reception.
1.Arm direction can be quickly interchanged
2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3.Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)
|Barrier gate life-span||>5,000,000 times|
|Suit application||indoor and outdoor parking system|
|Open/close method||by remote control, push key, manual handle|
|Max length||Max. 8m straight arm with rubber bar
Max. 4.5 m folding arm with rubber bar
Max. 4m fence arm with rubber bar
|Push Butoon||Inclusive of arm and "push button" which opens/closes barrier|
|Standard quotation||include barrier gate body, straight bar, push key control panel, two remote controllers, exclusive of LED light bar, loop detector, boom bracket and anti-collision mechanism (wave pressure sensor, PIR sensor): need to buy separately.|
|Optional housing color||yellow/iron gray (default), red/iron gray, other color for optional|
|Optional boom arm direction||leftward or rightward (fixed after order)|
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
Official quotation form with all clear specifications according to the order
Invoice will be issued once the quotation is confirmed.
Payment shall be issued once the invoice issued. Full payment is acquired.
Bulk production shall be taking 15-25 working days.
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
Pls Contact Us Freely
