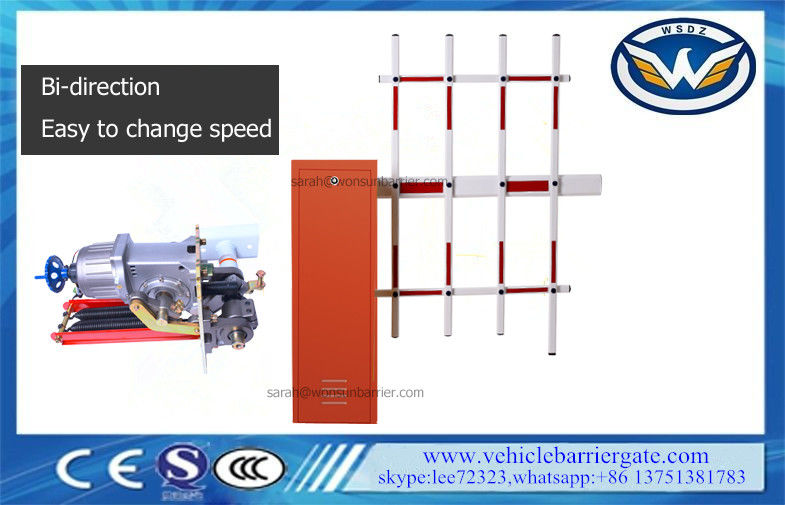

Anti Collision Traffic Barrier Gate Fence Arm Boom Barriers Manual Release Function

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

Anti Collision Traffic Barrier Gate Fence Arm Boom Barriers Manual Release Function

China Anti Collision Traffic Barrier Gate Fence Arm Boom Barriers Manual Release Function supplier
Anti Collision Traffic Barrier Gate Fence Arm Boom Barriers Manual Release Function supplier Anti Collision Traffic Barrier Gate Fence Arm Boom Barriers Manual Release Function supplier

Large Image :  Anti Collision Traffic Barrier Gate Fence Arm Boom Barriers Manual Release Function

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: WSTP-120

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: 225usd
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Housing Dimension: 320*250*944.5mm Color: Red, Yellow
Cabinet Material: 1.5mm Cold Roller Steel Plate Boom Type: Straight Arm, Folding Arm, Fence Arm, Optional
CE Certificate: Yes Product Name: CE Traffic Barrier Gate Fence Arm Boom Barriers Security Gate

CE Traffic Barrier Gate Fence Arm Boom Barriers Security Gate





Barrier arm lengths can be up to 4.5m, dependent upon your requirements.Asa manufacturer,we are able to offer best barriers to suit client specification, such as matching corporate colors.



Quality control is a top priority, so we are vigorously test our boom barriers to ensure long service left in the field.



The design is the result of years of experience,combining the latest technology with proven, tried and tested methods.The result is a superior product, giving long service left and peace of mind.



Applications:



1. This barrier gate is widely used for the facilities of parking lots, traffic or toll system, we don’t suggest for high way and other heavy duty application.
2. Arms can be chosen from 1 meter to 6 meters.
3. Manual handle can be used to open the arm in case power off.
4. All the process is soft without any noise and shaking.
5. This barrier gate has many input terminals for photocell,, loop detector, LED light bar, toll gate system and output terminals for lamp.





Technical Data



Model WSTP-120
Size 320*250*944.5mm
Rating Voltage AC 220/110V ±10%, 50/60Hz
Motor Power 80w
Speed Option from 1s to 6s
Material 1.5mm galvanized plate or cold roll plate with epoxy paint
Weight 55 KG
Operation Testing More than 2 million times
Arm Option

Straight arm, 1-6 m for option, 45*80mm or 45*100mm

Folding arm, 1-4.5 m for option, 90 degree or 180 degree

Fence arm, 1-5m for option, two fence or three fence

Working Temperature -45°C — +75°C







Features:



(1) Free-maintenance torque motor ensures 100% duty cycle operation with 2 million MTBF.
(2) Easy installation and maintenance reduces your labor cost.
(3) Anti-collision mechanism will protect the boom arm not to be damaged once boom arm was collided by vehicle.
(4) Anti-hit by pressure resistance bounce.
(5) Motor over-current protection,steady,low noise,fast speed.
(6) Manual release function.





Each barrier will include:



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting









Best service for our customer:



Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.



Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.





Market Revenue(Previous Year) Total Revenue (%)
North America USD 63,608 1
South America USD 508,869 8
Eastern Europe USD 3,180,436 50
Southeast Asia USD 318,043 5
Oceania USD 127,217 2
Mid East USD 190,826 3
Western Europe USD 1,017,739 16
Domestic Market USD 954,130 15









RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.

- 1. Inquiry

Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request

-2. Quotation

Official quotation form with all clear specifications according to the order

-3. Invoice

Invoice will be issued once the quotation is confirmed.

-4. Payment

Payment shall be issued once the invoice issued. Full payment is acquired.

-5. Production

Bulk production shall be taking 15-25 working days.

-6. Delivery

by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
