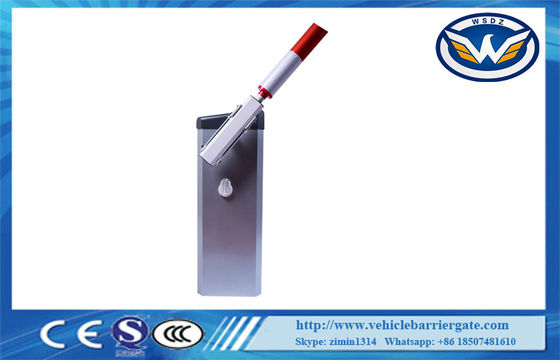

Speed Adjustable Car Parking Barriers With 24V Brushless Servo Motor

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1UNIT

Price: Negotiate

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

automatic car park barrier

,

parking lot barriers

Operation Time:
0.6,0.9,2,4sec
Functions:
Speed Adjustable, Arm Direction Can Be Changed, Motor Won't Get Heat, Oil Tight
OEM:
YES
Product Name:
Car Park Barrier With 24V Brushless Servo Motor Barrier For Parking Lot System
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Material::
2.00mm Cold Roll Plate
Operation Time:
0.6,0.9,2,4sec
Functions:
Speed Adjustable, Arm Direction Can Be Changed, Motor Won't Get Heat, Oil Tight
OEM:
YES
Product Name:
Car Park Barrier With 24V Brushless Servo Motor Barrier For Parking Lot System
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Material::
2.00mm Cold Roll Plate
Description

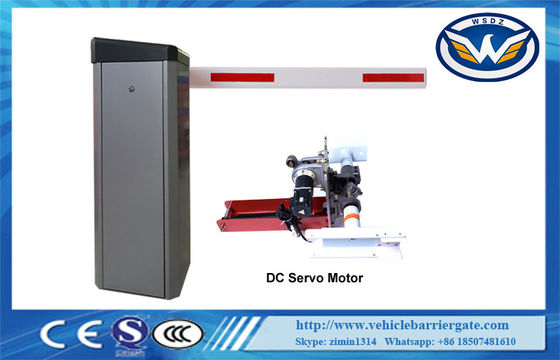

Speed Adjustable Car Parking Barriers With 24V Brushless Servo Motor

Car Park Barrier With 24V Brushless Servo Motor Barrier For Parking Lot System



Quick Details:



Speed Time:0.6s,0.9s,2s,4s,6s

Rated Volatge:AC90V~AC264V,DC24V,50/60HZ

Working Temperature:-40℃~85℃

Lifetime:>10 million times or 10 years





Technical Parameter List



DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 65 65
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55





Advantages:

1. When Power off, gate automatically open, no clutch design, no need human intervention. When power on,
gate automatically reset,
restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual
operation is required when
power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch,
which ensure that the system can be used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe
and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator
through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the
opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing
out to avoid damage to the vehicle
and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication module)
18. Anti-collision alarm signal interface.




Controller functions:



1. NO/NC mode selection, in the dip switch 1, ON for NC, OFF for NO.

2. Self-locking when power off or gate automatically open selection. In dip switch 2, ON is for automatic opening

when power off;

3. Automatic reverse or stop selection when meets external obstacle. In dip switch 3, ON is for automatic stop and

OFF is for automatic reversing;

4. Auto closing speed adjustment selection, in the dip 4, 0.9s and 1.3s for option. ON is for 0.3s.

5. Delay automatic closed selection. Dip switch5,6,7,8 are for it and the delaying time is 1s,2s,3s,4s,5s,8s,10s,

15s,20s,25s,30s,35s,40s,50s,60s for option.

6. The boom angle adjustment, suitable for some areas that the boom can’t reach the vertical position caused

by obstacle. Adjustable for 60°, 70°, 80° and 90°. And the dip switch is another independent one (1 2 switch).

7. Maintenance mode switch, convenient for possible repairing and adjusting.

8. RS485 interface, can connect with computer, check the barrier gate state and alarm information.

9. Parking lot open/close control signal and remote control open/close signal are separate. Arm opening have

memory function, Number of pulse arm opening, and closed after number of cars (must be equipped with a vehicle detector)

10. Emergent stop input signal function.

11. Arm swing out signal input function.

12. Alarm information output function.

13. Barrier gate OK signal output function.

14. All input ports are optoelectronic isolation, the input voltage range is DC5 ~ 24V

15. Vehicle detector signal input and infrared signal input, that is, use the output COM, NC of the loop detector

(normally the No.4 and No.11, specially related with detector, the barrier gate not respond to closing command when

the coil is not connected).The infrared detector uses the NPN type.




Operation Time and Boom Length Configuration Parameter


Boom Type(meter) Operation Time(seconds) Boom Height(meter)
Fast speed boom≤2.5 0.6 0.83
Fast speed boom≤3 0.9 0.83
Common straight boom≤4.5 2.5 0.83
Common straight boom≤6 4.5 0.83
80*45mm 90°folding boom≤3 1 0.83
80*45mm 90°folding boom≤3.5 2.5 0.83
80*45mm 90°folding boom≤5 5 0.83
80*45mm 180°folding boom≤3 1 0.83
80*45mm 180°folding boom≤4 2.5 0.83
80*45mm 180°folding boom≤5 4.5 0.83
100*45mm 2 fence boom≤3.5 2.5 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 2 fence boom≤5 6 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 3 fence boom≤3 3 0.83m, small vertical boom is 1.5m, landing boom is 1.6m
100*45mm 3 fence boom≤4 6 0.83m, small vertical boom is 1.5m, landing boom is 1.6m

Notice: the “Boom Height ” means height from the boom holding point to the ground



FAQ:



Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according
to quantity.We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide free samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pcs.
