Auto Reverse 0.9Sec Parking Barrier Gate Straight Arm 6 Meters Boom Length

China Auto Reverse 0.9Sec Parking Barrier Gate Straight Arm 6 Meters Boom Length supplier
Auto Reverse 0.9Sec Parking Barrier Gate Straight Arm 6 Meters Boom Length supplier Auto Reverse 0.9Sec Parking Barrier Gate Straight Arm 6 Meters Boom Length supplier

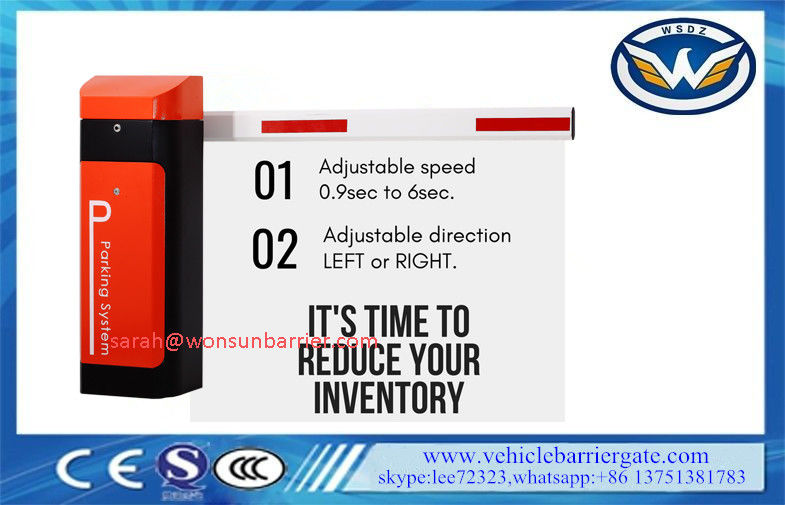

Large Image :  Auto Reverse 0.9Sec Parking Barrier Gate Straight Arm 6 Meters Boom Length

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiate
Packaging Details: carton box
Payment Terms: T/T, Western Union
Supply Ability: 2000/month
Contact Now
Detailed Product Description
Boom Length: Max 6 Meters Speed: 0.9s-6s
Color: Black&Red, Blue&White, Grey&white Customized OEM/ODM:: Supported
Motor Type: AC Motor Product Name: Auto Reverse 0.9Sec Parking Barrier Gate Straight Arm 6 Meters

Auto Reverse 0.9Sec Parking Barrier Gate Straight Arm 6 Meters





Technical Parameter



Model No. DZ-132
Framework Material Cold-roll sheet
Beam Aluminum alloy
Dimension 352 * 302 * 1120mm
Net Weight 45KG
Input Interface Photo cell, loop detector, parking system,wire control
Input 12V relay signal or Pulse Wide>100MS
Power Supply AC220V/110V, 50/60Hz
Motor Consumption 80W
Working Temperature -35°C to +85°C
Relative Humidity ≥90%



Functions



1. The arm direction can be quickly interchanged

2. Open the barrier gate by motor wheel when power off and automatic locking when power on.

3. Balance boom running with a motor transmission of cranks and shafts.

4. Remote control to operate the barrier gate.

5. Auto-reverse when the boom meets obstruction.

6. Infrared photocells connector is available.

7. Loop detector connector is available.

8. Well-intergrated with car parking system equipment,with wire control(must be switch signal).

9. Connector for traffic light(AC220V,power less than 40W)

10. Offering dry contact signal for car parking system(COM,NC,NO)

11. Auto-delay when closing(adjustable)





The parameter for selecting the balance tension spring



Boom Type The Length of Boom Selection Spring

Boom

Type



Spec.(diameter*Length)



Straight Boom/Folding Boom

6M≥L>5M Extension Spring (ø5.5MM*280)+(ø4.5MM*280)
5M≥L≥4.5M (ø5.5MM*280)
4.5M>L≥3M (ø4.5MM*280)
Fence Boom 5M≥L≥4M (ø6.5MM*280)+(ø6.5mm*x280)
4M>L≥3M (ø5.5MM*280)+(ø4.5mm*280)









 Common Malfunctions and Solutions



1 The arm is no reaction when connect the power and press the open/close key.

a: Check the controller’s power supply and fuse.

b. There is no battery or power shortage on the remote control, the distance is too far.

c.There is co-frequency interference in the vicinity, check with the wire control interface to see if it’s normal.

d.The external protection circuit has failed or in a protected state,check the infrared device or loop detector device.

e: Check the motor and capacitor to see if invalid.

2 The boom could not raise up or fall down when press the open/close key.

a:The photoelectric limit is on bad contact,check the connections.

b:Replace the photoelectric limit switch.

3 The motor is buzz,boom is no reaction when press the open/close key.

a:The voltage is insufficient,check the 220V power supply.

b:The gears are stuck, and hand wheel rotates several circles toward the loose place, and re-adjust the photoelectric limit to prevent the struck caused by mechanical limit from being before the photoelectric limit.

c: It’s imbalance between the balance spring and boom,re-adjust it.

4 The boom is not horizontal and vertical.

a:The photoelectric limit is shaft,re-adjust and fix.

b:Check the connection rod and adjust the boom to horizontal and vertical,and make the photoelectric limit acts before the mechanical limit.

5 The force for arm up become smaller,sometimes need the handle assistance to make it up.

a: Check the motor and capacitor.

b: Re-adjust the spring balance.





FAQ



1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.



2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.



3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.



4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
