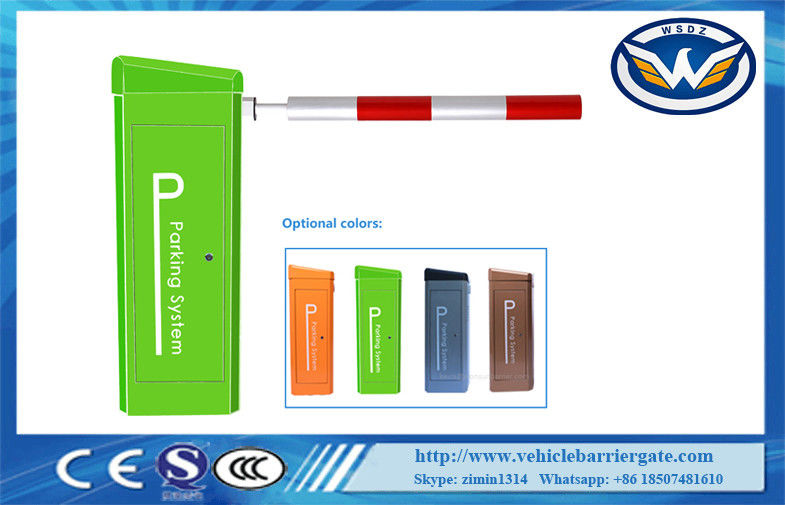

Large Image :  Servo Parking Intelligent Barrier Inbuilt RS485 0.9s - 6s Speed Adjustable

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138 Intelligentl barrier

Payment & Shipping Terms:

Minimum Order Quantity: 1UNIT
Price: Negotiate
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Operation Time: 0.6,0.9,2,4sec OEM/ODM: YES
Functions: Speed Adjustable, Arm Direction Can Be Changed, Motor Won't Get Heat, Oil Tight Working Environment Temperature: -40 ℃ ~ +85 ℃
Certificate: CE Product Name: 0.9s To 6s Speed Adjustable Servo Intelligent Parking Barrier With Inbuilt RS485

0.9s To 6s Speed Adjustable Servo Intelligent Parking Barrier With Inbuilt RS485


DZ-138 barrier gate specifications:


DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor No-load Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying



Advantages:

1. When Power off, gate automatically open, no clutch design, no need human intervention. When power on,
gate automatically reset,
restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual
operation is required when
power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch,
which ensure that the system can be used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe
and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator
through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the
opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing
out to avoid damage to the vehicle
and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Arm direction can be changed easily
20. Adjustable speed port (S curve adjustment)
21. High-strength precision cast steel, industry moving parts beyond the industry quality


Service Items

1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition
of complying with the operating instruction, without the unauthorized maintenance of the parts and the
machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate
product from the date of use for a period of two years or from the date of shipment up to three years
including all mechanical and electronic components other than special consumables.
2. Lifetime charged servicing is offered.
3. Technology servicing is supplied.
*The following situations are charged for servicing (or replacement):
1. Broken by wrong installation;
2. Broken by improper voltage;
3. The surfaces of the system destroyed by wrong installation or use.
4. Broken by natural disaster.
5. Overdue.
6. Servicing items out of the promises.



Servo Parking Intelligent Barrier Inbuilt RS485 0.9s - 6s Speed Adjustable


FAQ:

Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according
to quantity.We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide free samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pcs.
