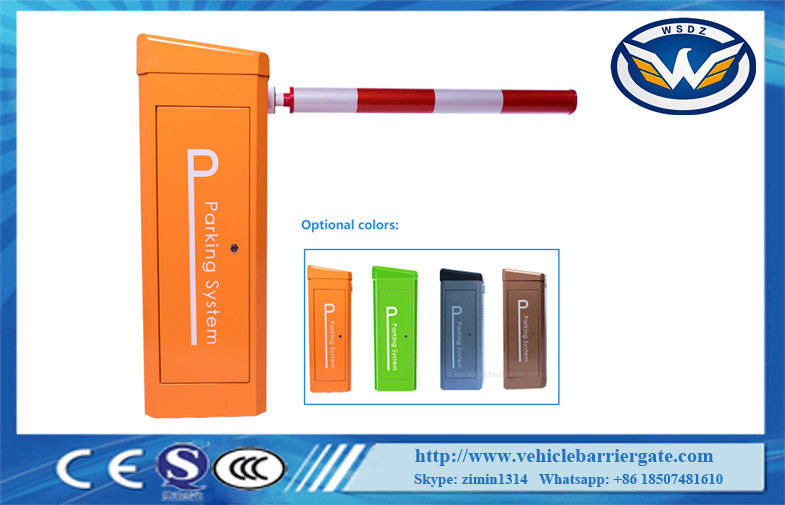

24VDC Brushless Motor Toll Barrier Gate 3000r/ Min For Car Parking System

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-138 Toll barrier gate

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiate

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

traffic barrier gate

,

security barrier gate

Operation Time:
0.6,0.9,2,4sec
Power Supply:
24/100/240VAC,50/60Hz
Functions:
Speed Adjustable, Arm Direction Can Be Changed, Motor Won't Get Heat, Oil Tight
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Protection System(IP):
IP54
Product Name:
24VDC Brushless Motor Toll Station Sevor Barrier Automatic Car Parking System
Operation Time:
0.6,0.9,2,4sec
Power Supply:
24/100/240VAC,50/60Hz
Functions:
Speed Adjustable, Arm Direction Can Be Changed, Motor Won't Get Heat, Oil Tight
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Protection System(IP):
IP54
Product Name:
24VDC Brushless Motor Toll Station Sevor Barrier Automatic Car Parking System
Description
24VDC Brushless Motor Toll Barrier Gate 3000r/ Min For Car Parking System

24VDC Brushless Motor Toll Station Sevor Barrier Gate Car Parking System


DZ-138 barrier gate specifications:


DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor No-load Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55



Functions and Features:


1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.

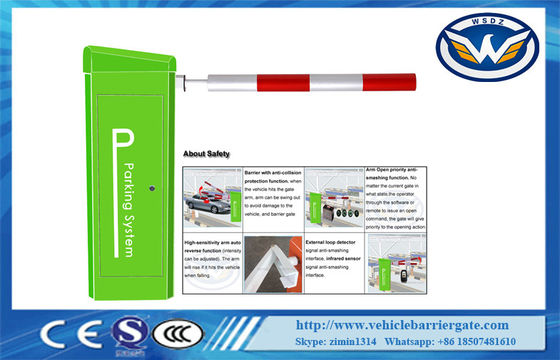

12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality



The parameter for selecting the balance compressed spring


Number The length of boom (L=meter) Diameter of the spring (D=mm) Link hole selection
1 2.5<L<3.5 D=4.5 Link hole 2
2 3.5≤L≤4.0 D=5.5 Link hole 1
3 4.0<L<5.5 D=6.5 Link hole 2
4 5.5≤L≤6.0 D=6.5 Link hole 1



The parameter for selecting the balance tension spring


Boom Type The Length of Boom Selection Spring

Boom
Type


Spec.(diameter*Length)


Straight Boom/Folding Boom

6M≥L>5M Extension Spring (ø5.5MM*280)+(ø4.5MM*280)
5M≥L≥4.5M (ø5.5MM*280)
4.5M>L≥3M (ø4.5MM*280)
Fence Boom 5M≥L≥4M (ø6.5MM*280)+(ø6.5mm*x280)
4M>L≥3M (ø5.5MM*280)+(ø4.5mm*280)


(the parameter is based on the company’s boom)
