Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: carton box
Payment Terms: T/T, Western Union
Supply Ability: 2000/month
Boom Length: |
Max 6 Meters |
Speed: |
0.9s, 2s, 4s |
Certificate:: |
CE |
OEM/ODM:: |
Supported |
Motor Type: |
AC Motor |
Product Name: |
Speed Adjustable Frequency Convertion Motor Parking Vehicle Barrier Gate |
Boom Length: |
Max 6 Meters |
Speed: |
0.9s, 2s, 4s |
Certificate:: |
CE |
OEM/ODM:: |
Supported |
Motor Type: |
AC Motor |
Product Name: |
Speed Adjustable Frequency Convertion Motor Parking Vehicle Barrier Gate |

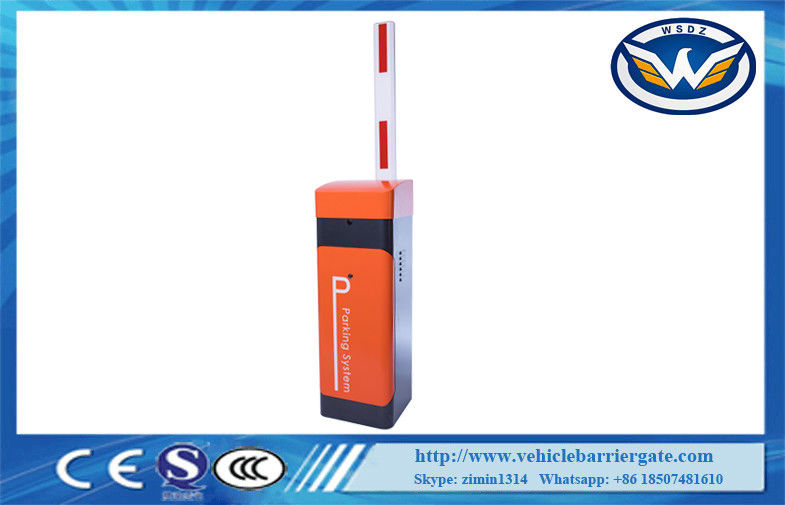

Speed Adjustable Frequency Convertion Motor Parking Vehicle Barrier Gate
| Model No. | DZ-132 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 352 * 302 * 1120mm |
| Net Weight | 45KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | AC220V/110V, 50/60Hz |
| Motor Consumption | 80W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 3 million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time | 0.9sec-6sec |
Functions and Features:
1.Arm direction can be quickly interchanged
2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3.Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)
Service:
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide samples ?
A:No,we don't provide samples. The MOQ of our products is 1pc.
