Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $439/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Features: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Name: |
24V DC PMSM Brushless Servo Motor Automatic Barrier Gate Barrier Road |
Color: |
Yellow,Orange,Green,Gray Or Customized |
Boom: |
Straight,folding,fencing ,flexible |
Motor: |
Servo Motor |
Power Supply: |
24/100/240VAC,50/60Hz |
Protect Level: |
IP65 |
Application: |
Parking Lots, Toll System, Airport, Hotel, Residential |
Speeds: |
0.6s,0.9s,1s,1.8s,3s,6s |
OEM Service: |
Support |
Features: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Name: |
24V DC PMSM Brushless Servo Motor Automatic Barrier Gate Barrier Road |
Color: |
Yellow,Orange,Green,Gray Or Customized |
Boom: |
Straight,folding,fencing ,flexible |
Motor: |
Servo Motor |
Power Supply: |
24/100/240VAC,50/60Hz |
Protect Level: |
IP65 |
Application: |
Parking Lots, Toll System, Airport, Hotel, Residential |
Speeds: |
0.6s,0.9s,1s,1.8s,3s,6s |
OEM Service: |
Support |

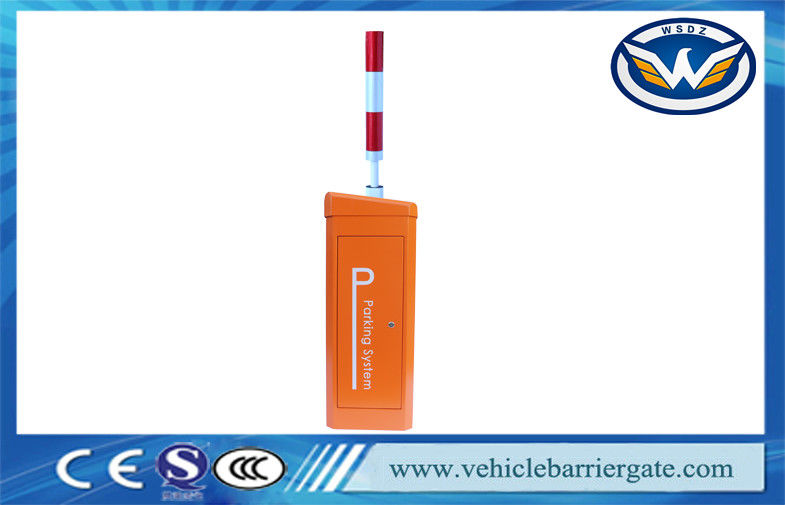

Automatic Parking Lot Barreras Vehiculares Servo Barrier with Speed Port Adjusted
Our Advantages:
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support:
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
The DZ-138 servo barrier gate series, which manufactured by our company, adopts international advanced technology, mechanical and electrical integrated design. Planet gear drive, high torque, un-blocked, oil tight, no noise, automatically Self-locked when power off, with 10 million operation times. The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), apply to the global voltage, high-speed operation and rapid response, frequent positive &negative operation in 24 hours does not heat, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automation and intelligentize, and the barrier arm open/close is fast and smooth, easy to use and safe.
DZ-138 barrier gate specifications:
| Rated Volatge | AC90V~AC264V,DC24V,50/60HZ |
| Speed Time | 0.3s,0.6s,0.9s,2s,4s,6s |
| Motor Power | 50W,max 100W |
| Boom Length | 2meter to 6meter(max) |
| Working Temperature | -40℃~85℃ |
| Housing Size | 342*312*959*2mm(L*W*H*TH) |
| Lifetime | >10 million times or 10 years |
| MTTR | <0.5hour |
| MTBF | >5 million times |
| Protection Grade | IP68 |
| Remote Controll Distance | ≤100 meter |
| Motor Speed | 3000 r/min |
| Relative Humidity | ≤90% |
| Running Noise | <50dB |
| Net Weight | 42.6KG |
| Application | Parking Lots, Toll Gates, Goods Yards, RailwayCrossings,Commercial Premises,Apartment Block Access |
| Description | Max boom length | Action time (s) | boom height ( m) |
| Slow speed ,straight | L ≤ 6 m | 6 | 0.83 |
| Medium speed ,straight | L ≤ 4.5 m | 3 | 0.83 |
| Quick speed,straight | L ≤ 3 m | 1-2 | 0.83 |
| Fastest speed ,straight | L ≤ 2.5 m | 0.6-0.8 | 0.83 |
| 90° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| 180° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| fence boom (2/3) | L ≤ 4.5 m | 6 | 0.9/1.5 |
Functions and Features
1.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,
restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when
power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle
and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Arm direction can be changed easily
20. Adjustable speed port (S curve adjustment)
21. High-strength precision cast steel, industry moving parts beyond the industry quality
FAQ:
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for larger order
Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.
Q: How is your payment terms?
A: T/T or Western Union etc.
Q: Do you provide free samples ?
A: No,we don't provide free samples. The MOQ is 1pcs.
We use strong carton case with air bubble filled inside to protect products and save your cost.
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
