Speed Adjustable Vehicle Barrier System With 24VDC Brushless Motor Servo

China Speed Adjustable Vehicle Barrier System With 24VDC Brushless Motor Servo supplier
Speed Adjustable Vehicle Barrier System With 24VDC Brushless Motor Servo supplier Speed Adjustable Vehicle Barrier System With 24VDC Brushless Motor Servo supplier Speed Adjustable Vehicle Barrier System With 24VDC Brushless Motor Servo supplier Speed Adjustable Vehicle Barrier System With 24VDC Brushless Motor Servo supplier Speed Adjustable Vehicle Barrier System With 24VDC Brushless Motor Servo supplier

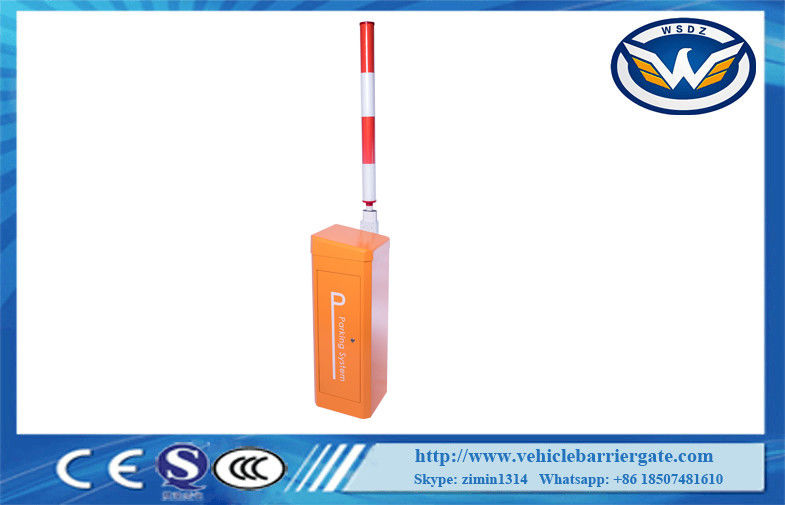

Large Image :  Speed Adjustable Vehicle Barrier System With 24VDC Brushless Motor Servo

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Operation Time: 0.6,0.9,2,4.5sec Power Supply: 24/100/240VAC,50/60Hz
Running Noise<: 45dB Working Environment Temperature: -40 ℃ ~ +85 ℃
Protection System(IP): IP54 Product Name: 24VDC Brushless Motor Servo Barrier Vehicle Barrier Gate With Speed Adjustable

24VDC Brushless Motor Servo Barrier Vehicle Barrier Gate With Speed Adjustable

Manually Unlocked Open/Close Arm When Power Off
The barrier gate may into the vertical or horizontal mechanical dead point position when power off, if manually up/down the arm at this time, please follow the steps as below:

  • make the key rotate clockwise 90 degrees and open the door (shown in picture 2)
  • unscrew the two butterfly nuts upward, open the cover
  • lifting the boom: use the screwdriver to push the crank connected rod away from the dead point position, rise up the barrier gate manually (Push to Unlock)
  • dropping the boom: use the hand to pull the crank connected rod down to leave the dead point position, drop the barrier gate manually (Pull to Unlock)


DZ-138 barrier gate specifications:


DZ-138 barrier gateV06TV09T
Max Boom Length and Diameter2500mm, Ф75mm3000mm, Ф75mm
Open/Close Time0.6sec0.9sec,2.5sec,4.5sec
Power Supply24/100/240VAC,50/60Hz24/100/240VAC,50/60Hz
Power Consumptionmax.150W100w
Machine CaseVarnished 2.0mm steel plateVarnished 2.0mm steel plate
Machine Case Size(W*D*H)342*312*959mm342*312*959mm
Net Weight43kg42.6kg
Operating Temperature Range℃-45℃~+85℃-45℃~+85℃
Driving MethodServo motorServo motor
Protection System(IP)5454
Insulation ClassFF
Relative Humidity≤90%≤90%
Motor No-load Speed3000r/min3000r/min
Remote Control Distance≤100m (open, sunny weather)≤100m (open, sunny weather)
Output Torque1.2N.M*140=160N.M0.86N.M*140=120N.M
Running Noise<45dB45dB
Surface TreatmentOutdoor metal powder electrostatic sprayingOutdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%)100-240 volt100-240 volt
Frequency(Hz)50-6050-60
Max Power Consumption(watt)88
FuseF5AHF5AH
Control Voltage24V DC/max.3000mA24V DC/max.3000mA
Input-end Number88
Open Collector Output Number22
Zero Level Reversal Relay Number33
Operating Temperature Range℃-45℃~+85℃-45℃~+85℃
Protection System(IP)2020
Weight(gram)450gram450gram
Dimensionmm(L-W-H)158*126*55



Functions and Features:


1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality



Adjust the Position of Barrier Arm
To adjust the position of the boom (for example, after exerting excessive force), please take the steps as below:

  • open the barrier gate door and remove the cover
  • loosen the two fasten screws of the DZ-1 on the boom shaft with the M12's Allen wrench, so that the boom can be repositioned by hand.
  • adjust the position of the boom (horizontal position, as shown in picture 1).
  • Use the torque wrench to tighten the two fastening screws (72 Nm)


The parameter for selecting the balance compressed spring


NumberThe length of boom (L=meter)Diameter of the spring (D=mm)Link hole selection
12.5<L<3.5D=4.5Link hole 2
23.5≤L≤4.0D=5.5Link hole 1
34.0<L<5.5D=6.5Link hole 2
45.5≤L≤6.0D=6.5Link hole 1



The parameter for selecting the balance tension spring


Boom TypeThe Length of BoomSelection Spring

Boom
Type


Spec.(diameter*Length)


Straight Boom/Folding Boom

6M≥L>5MExtension Spring(ø5.5MM*280)+(ø4.5MM*280)
5M≥L≥4.5M(ø5.5MM*280)
4.5M>L≥3M(ø4.5MM*280)
Fence Boom5M≥L≥4M(ø6.5MM*280)+(ø6.5mm*x280)
4M>L≥3M(ø5.5MM*280)+(ø4.5mm*280)


(the parameter is based on the company’s boom)
