|Product Name:||1 Year Warranty Access Control Vehicle Barrier Gate LED Boom And Barriers||Motor Rated Power:||50W,max 100W|
|Running Speed:||0.3s/0.6s/0.9s/2s/4s||Rating Voltage:||AC90~264V,DC12V|
|Meterial:||2mm Cold-roll Steel Sheet||Housing Size:||342*312*959mm|
|Remote Control Distance:||≤100m||Keyword:||Vehicle Barrier Gate|

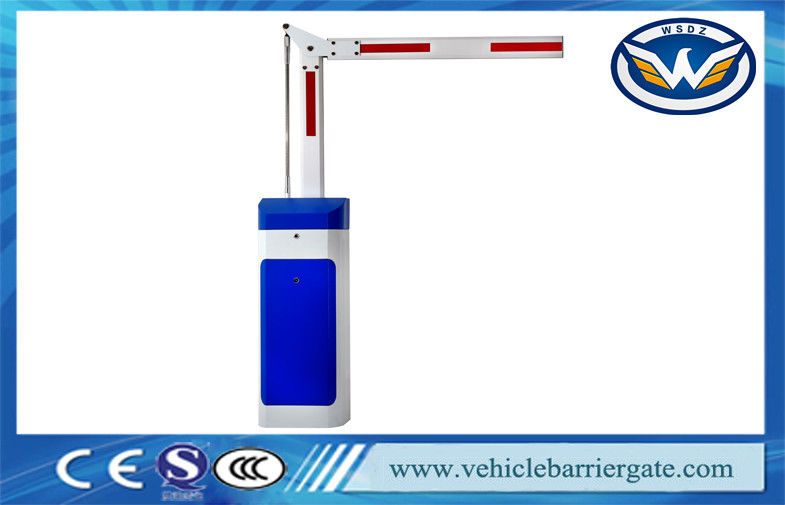

1 Year Warranty Access Control Vehicle Barrier Gate LED Boom and Barriers
If the operational failure can’t be handled by your technical staff, please contact our authorized service representative or professional assistance.
Please provide the barrier gate model, product serial number, version and other information when contact us for technical support services, which you can find in barrier gate model plate.
|Open/close time||1.8s/3s / 6s/8s|
|Barrier gate life-span||>5,000,000 times|
|Suit application||indoor and outdoor parking system|
|Open/close method||by remote control, push key, manual handle|
|Max length||Max. 8m straight arm with rubber bar
Max. 4.5 m folding arm with rubber bar
Max. 4m fence arm with rubber bar
|Push Butoon||Inclusive of arm and "push button" which opens/closes barrier|
|Standard quotation||include barrier gate body, straight bar, push key control panel, two remote controllers, exclusive of LED light bar, loop detector, boom bracket and anti-collision mechanism (wave pressure sensor, PIR sensor): need to buy separately.|
|Optional housing color||yellow/iron gray (default), red/iron gray, other color for optional|
|Optional boom arm direction||leftward or rightward (fixed after order)|
Easy installation and maintenance reduces your labor cost
Simple structure and no limit switch design ensures easy installation and maintenance which reduces your labor cost
Heavy-duty and simple-design housing
The housing adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non-scale and unfading in 5 years, conformed to the IP54 dustproof and waterproof, Simple design also decorates your premises
Anti-collision protects boom arm (optional)
Anti-collision mechanism will protects the boom arm not to be damaged once boom arm was collided by a vehicle.
Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.
Safety--- Anti-hit by IR photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
Automatically close after the given time
Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually
