0.3S High Speed Servo Motor Car Park Barriers System Security Barrier

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

0.3S High Speed Servo Motor Car Park Barriers System Security Barrier

China 0.3S High Speed Servo Motor Car Park Barriers System Security Barrier supplier
0.3S High Speed Servo Motor Car Park Barriers System Security Barrier supplier 0.3S High Speed Servo Motor Car Park Barriers System Security Barrier supplier 0.3S High Speed Servo Motor Car Park Barriers System Security Barrier supplier 0.3S High Speed Servo Motor Car Park Barriers System Security Barrier supplier

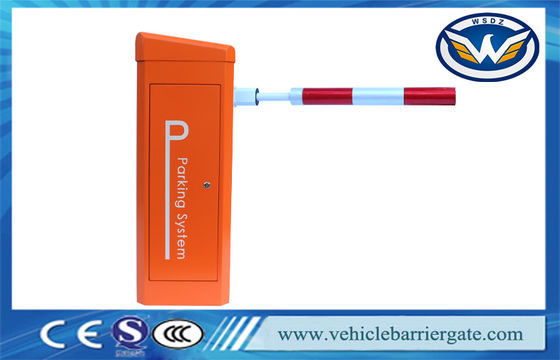

Large Image :  0.3S High Speed Servo Motor Car Park Barriers System Security Barrier

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE/ISO/SGS
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Product Name: 0.3S High Speed Servo Motor Car Park Barriers System Security Barrier Motor Rated Power: 50W,max 100W
Running Speed: 0.3s/0.6s/0.9s/2s/4s Rating Voltage: AC90~264V,DC12V
Meterial: 2mm Cold-roll Steel Sheet Housing Size: 342*312*959mm
Remote Control Distance: ≤100m Keyword: Car Park Barriers

0.3S High Speed Servo Motor Car Park Barriers System Security Barrier







Technical Specification



1 Product Name 0.3S High Speed Servo Motor Car Park Barriers System Security Barrier
2 Rated Volatge AC90V~AC264V,DC24V,50/60HZ
3 Speed Time 0.3s,0.6s,0.9s,2s,4s,6s
4 Motor Power 50W,max 100W
5 Boom Length 2meter to 6meter(max)
6 Working Temperature -40℃~85℃
7 Housing Size 342*312*959*2mm(L*W*H*TH)
8 Lifetime >10 million times or 10 years
9 MTTR <0.5hour
10 MTBF >5 million times
11 Protection Grade IP68
12 Remote Controll Distance ≤100 meter
13 Motor Speed 3000 r/min
14 Relative Humidity ≤90%
15 Running Noise <50dB
16 Net Weight 42.6KG
17 Application Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Commercial Premises, Apartment Block Access





Barrier Gate Controller

0.3S High Speed Servo Motor Car Park Barriers System Security Barrier

0.3S High Speed Servo Motor Car Park Barriers System Security Barrier





Advanced Functions

1: power failure automatic gate, no clutch design,

Incoming call automatic reset, restore to close state. If you have special need that manual intervention, it can be set up easily, you can gently rotate poles to manual Open / close boom without open the housing by using adjust the control board

2: a variety of input and output modes can be selected, often open and close can be selected.

3: rod angle can be adjusted from 55~90 degrees, 10 degree resolution.

4: Speed can be adjusted, 0.9s to 6s

5:all kinds of state signal output.

6: barrier gate running state OK signal output.

7: alarm signal output.

8: traffic lights signal relay output.

9: external Vehicle detection signal, infrared sensor signal.

10: AC90V~AC264V50/60Hz, the global universal voltage standard. Also available

24V battery power supply.(No mains place to pick up solar energy,wind energy to recharge battery)

11: the Opening time is less than 0.9s.

12: the running noise is less than 60dB.

13: standard boom length 3m.

14: Power consumption: 50W, maximum power 100W.

15:It is also a simple matter to change the handing on-site from right-Hand to left-Hand.

16: automatically detect whether the balance spring fatigue or damage, if the spring

fatigue tips to adjust, if you can not adjust the spring, replace the spring is very easy,

no need to use tools, hand can be replaced.

17: remote control open / close and car park system control open / close, separate

input, respectively, the number of corresponding statistics.

18: the RS232 or RS485 connected to PC of the parking system.









RFQ



1.Are you the manufacturer or trade company?

-------We're professional manufacturer who has our own factory in Shenzhen since 2007.

2.What is your biggest sadvantage?

----------Serve motor,support for AC and DC power,only us use this motor for barrier gate in China,rod and operation time can be adjusted,no limit switch,free-debbugging.

3.Why the price is higher than others?

-------This barrier gate combining permanent-magnet synchrous serve motor(PMSM motor),the technology is the mostt anvanced in China.At the same time,we can supply the more cheaper price barrier gate to meet different clients.

4.What's the MOQ?

-------Sample order for 1 set is supported.

5.What is your delivery time?

---------As for usual order,it is 3-5 days after received your payment with 50 sets order quanlity.

--------For OED order,it is 7-15 days after received your payment with 30 sets order quality.

6.What is thr terms of payment?

--------30%-40% advance deposite,60%-70% balance beforefor shipment for large quantity.

7.What is your Warranty?

--------Our Warranty is 2 year.





After-sale service



1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition

of complying with the operating instruction, without the unauthorized maintenance of the parts and the

machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate

product from the date of use for a period of two years or from the date of shipment up to three years

including all mechanical and electronic components other than special consumables.

2.Lifetime charged servicing is offered.

3.Technology servicing is supplied.

*The following situations are charged for servicing (or replacement):

1.Broken by wrong installation;

2.Broken by improper voltage;

3.The surfaces of the system destroyed by wrong installation or use.

4.Broken by natural disaster.

5.Overdue.

6.Servicing items out of the promises.
