Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Solar Power 2 Year Warranty Automatic Barrier Gate Boom Gates |
Opening Time: |
Adjustable |
Voltage: |
AC90V~AC264V,DC24V |
Continuously Of Operation: |
100% |
MTBF: |
>5000,000 Times |
MTTR: |
<0.5Hrs |
Name: |
Solar Power 2 Year Warranty Automatic Barrier Gate Boom Gates |
Opening Time: |
Adjustable |
Voltage: |
AC90V~AC264V,DC24V |
Continuously Of Operation: |
100% |
MTBF: |
>5000,000 Times |
MTTR: |
<0.5Hrs |

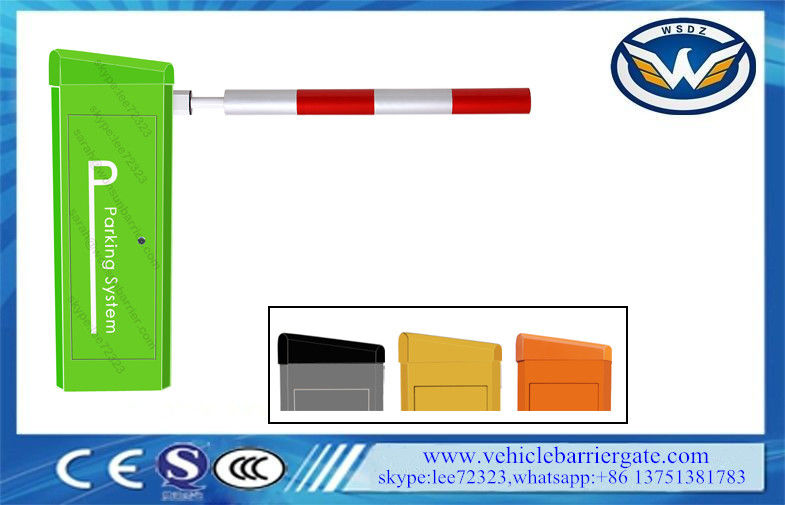

Solar Power 2 Year Warranty Automatic Barrier Gate Boom Gates
Functions:
1. The gate automatically open when the power is off, no clutch design, no need human intervention. When the power is on, the gate automatically reset, and the gate returns to being closed, truly unattended, fire safety standards. If there is special need, manual operation is required when the power if off, the operating arm can open and close manually. Can also set up the control board DIP switch, which will ensure the system can be used at any time
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Speed can be adjusted.
Data sheet
Max boom length | 6 meters |
Opening time |
0.6sec to 6sec
|
Power
|
Max 100w |
Housing Material
|
Powder-coated steel/ Aluminum
|
Net weight (no boom)
|
43KG
|
MTBF
|
10 million times
|
Working temperature
|
-40°C~+50°C
|
Protection grade
|
IP65
|
Driving unit
|
Servo motor |
Program 1
The barrier gate can be controlled by two-key push button and an impulse will trigger the operation relay.
Connecting GND and COM, 24V with UP is for machine opening, 24V with Down is for machine closing. Other accessories interface input available, like IR sensor and loop detector signal.
Program 2
The barrier gate can be controlled by remote controller or GSM gate opener.
Connecting the antenna receiver GND to COM on the board, Remote-up is for opening and Remote-down is for closing.
If the remote control receiver is non-electric relay signal, connecting GND and COM first, the 24V connecting with Remote-up is for opening and 24V connecting with Remote-down is for closing.
Program 3
The barrier gate can be controlled by gate photocell(IR sensor) or loop detector for automatic opening and closing. There are other signal input as emergency stop and alarm signal. The connection is as program 1 mentioned.
Program 4
Boom-drop signal input: when the boom is crashed by passing vehicle, the barrier gate will stop to run with a warning output.
Title | Specification | Qty | Unit | Note |
Barrier gate boom | 1 | Piece | ||
Machine case press board | 2 | piece | For fixing case | |
Expansion bolt | M16X150 | 4 | set | For fixing case |
Supporting pole | 1 | piece | Optional part | |
Expansion bolt | M8 | 4 | unit | For fixing boom |
Boom fixed screws | M12*70 | 2 | unit | |
Case Key | 2 | unit | ||
Balance spring | 1 | unit | For spare usage | |
Remote controller | 2 | unit | ||
Machine control | 1 | unit | ||
Instruction | 1 | piece |
Suggested Application
High-speed barrier gates can only be used for toll stations for highways and main roads.
The medium speed barrier gates are designed to control the entrance and exit channels for parking area, multi-storey car parking lot and other vehicular access routes.
The controller is specifically designed to control the barrier gates.
It is not permissible to use these barrier gates for any other purpose.
Any changes and replacements to the barrier gates and the control components are prohibited.
RFQ
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.
3.Q: First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
