Fast Speed 24V DC Servo Motor Barrier LED Arm Barrier Parking Gate
Features:
Run Speed Adjustable, Battery Supported, Maitenance Free, Free Debugging
Operation Time:
0.6,0.9,2,4,5sec
Cerificate:
CE
Protection System(IP):
IP65
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Product Name:
Fast Speed 24V DC Servo Motor Barrier LED Arm Barrier Parking Gate
Description

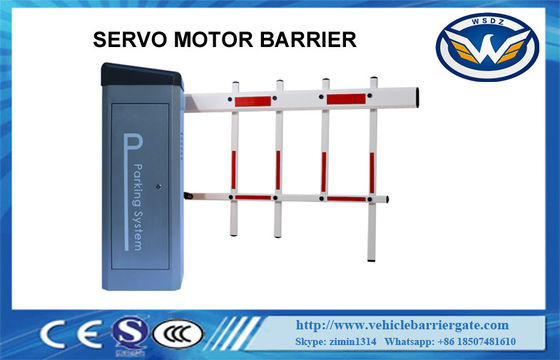

24V DC Servo Motor Barrier LED Arm Barrier Parking Gate Fast Speed

Fast Speed 24V DC Servo Motor Barrier LED Arm Barrier Parking Gate



Functions and Features:

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality


DZ controller specifications:


DZ Controller
Voltage(±10%)100-240 volt100-240 volt
Frequency(Hz)50-6050-60
Max Power Consumption(watt)88
FuseF5AHF5AH
Control Voltage24V DC/max.3000mA24V DC/max.3000mA
Input-end Number88
Open Collector Output Number22
Zero Level Reversal Relay Number33
Operating Temperature Range℃-45℃~+85℃-45℃~+85℃
Protection System(IP)2020
Weight(gram)450gram450gram
Dimensionmm(L-W-H)158*126*55



DZ-138 barrier gate specifications:


DZ-138 barrier gateV06TV09T
Max Boom Length and Diameter2500mm, Ф75mm3000mm, Ф75mm
Open/Close Time0.6sec0.9sec,2.5sec,4.5sec
Power Supply24/100/240VAC,50/60Hz24/100/240VAC,50/60Hz
Power Consumptionmax.150W100w
Machine CaseVarnished 2.0mm steel plateVarnished 2.0mm steel plate
Machine Case Size(W*D*H)342*312*959mm342*312*959mm
Net Weight43kg42.6kg
Operating Temperature Range℃-45℃~+85℃-45℃~+85℃
Driving MethodServo motorServo motor
Protection System(IP)6565
Insulation ClassFF
Relative Humidity≤90%≤90%
Motor Speed3000r/min3000r/min
Remote Control Distance≤100m (open, sunny weather)≤100m (open, sunny weather)
Output Torque1.2N.M*140=160N.M0.86N.M*140=120N.M
Running Noise<45dB45dB
Surface TreatmentOutdoor metal powder electrostatic sprayingOutdoor metal powder electrostatic spraying



Technical Support:

If the operational failure can’t be handled by your technical staff, please contact our authorized service representative or professional assistance.
Please provide the barrier gate model, product serial number, version and other information when contact us for technical support services, which you can find in barrier gate model plate.


Security Tips:

1 General Security Information
The design, manufacture and testing of the barrier system are use of the "state-of-the-art" technology and can only be manufactured after the satisfaction of the strict safety and reliability of technical standards. Even so, if the barrier system is not properly operated, it will also cause danger to people and property. So this manual must be fully read and all of the safety information must be followed.
If the barrier system is improperly used or used for non-intended use, the
manufacturer will refuse to be responsible for the resulting consequences and will cancel the original quality assurance.
2 Suggested Application
High-speed barrier gates can only be used for toll stations for highways and trunk roads.
The medium barrier gates are designed to control the access roads, multi-storey car parking lot and other vehicular access routes for vehicle parking areas.
The controller is specifically designed to control the barrier gates.
It is not permissible to use these barrier gates for any other purpose.
Any changes and replacements to the barrier gates and the control components are prohibited.
3 Safety sign
The following symbols used in this instruction are used to indicate potential hazards and other safety information.
4 Operating Safety
A safety margin of at least 500 mm must be provided between the end of barrier gates and the physical obstructions (such as buildings, walls and fences, etc.) that are closest to it. When the boom is moving, the personnel and other objects are forbidden to stay near the barrier gate. If you have installed the barrier and operating elements and are connected to a fixed main power supply, you must use a full polarity with a safety device. It must be operated in accordance with this installation manual, and be approved by the company before making any changes. The locking device of the boom is designed to bear winds of magnitude 10 (= 500N / ㎡.). If it’s expected that there will be a higher speed wind, must be approved by the company before change the fixed device of boom. A boom more than 3.5meter will be required to install a swing support or a support column. All of the circuit connections, wiring work and replacement of any circuit components must be carried out by professionally trained electricians. Please firstly disconnect the connections with main power supply before opening barrier gates. It is forbidden to make technical modification or changes to the barrier system.
After cutting off the power, start at least 10 seconds before starting again.
5 Technology Development
The manufacturer reserves the right to modify the technical specifications of the product to meet the latest technological developments without prior notice. The company is glad to provide the information about current operating manual and any information about the changes and extensions.
