DC24V Servo Motor Vehicle Barrier Gate For Parking Management System

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

DC24V Servo Motor Vehicle Barrier Gate For Parking Management System

China DC24V Servo Motor Vehicle Barrier Gate For Parking Management System supplier
DC24V Servo Motor Vehicle Barrier Gate For Parking Management System supplier DC24V Servo Motor Vehicle Barrier Gate For Parking Management System supplier DC24V Servo Motor Vehicle Barrier Gate For Parking Management System supplier

Large Image :  DC24V Servo Motor Vehicle Barrier Gate For Parking Management System

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Product Name: Parking Lot Automatic Boom Barrier System Gate And Gate Arm Barrier Working Environment Temperature: -40 ℃ ~ +85 ℃
Operation Time: 0.3,0.6,0.9,2,4sec Warranty: Liftetime Warranty For Motor, 2 Years Warranty For The Rest Parts Except Arm And Remote
Protection System(IP): IP65 Power Consumption: 150W/100W

DC24V Servo Motor Vehicle Barrier Gate For Parking Management System

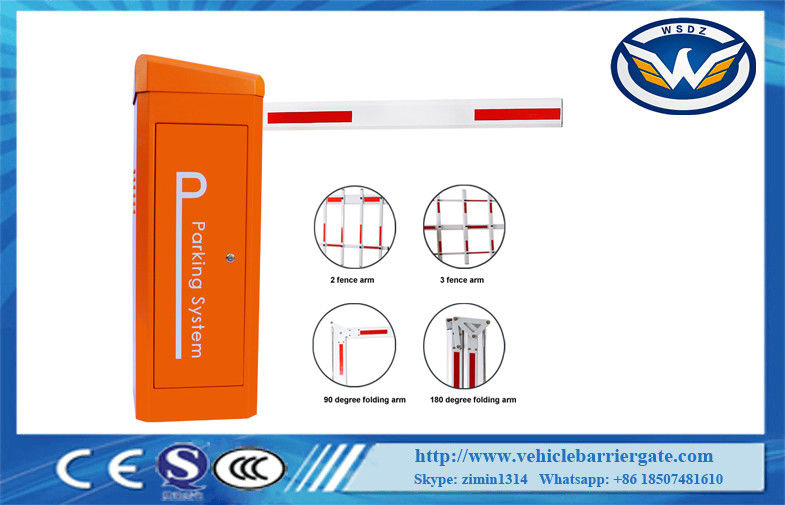

Operation Time and Boom Length Configuration Parameter



Boom Type(meter) Operation Time(seconds) Boom Height(meter)
Fast speed boom≤2.5 0.6 0.83
Fast speed boom≤3 0.9 0.83
Common straight boom≤4.5 2.5 0.83
Common straight boom≤6 4.5 0.83
80*45mm 90°folding boom≤3 1 0.83
80*45mm 90°folding boom≤3.5 2.5 0.83
80*45mm 90°folding boom≤5 5 0.83
80*45mm 180°folding boom≤3 1 0.83
80*45mm 180°folding boom≤4 2.5 0.83
80*45mm 180°folding boom≤5 4.5 0.83
100*45mm 2 fence boom≤3.5 2.5 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 2 fence boom≤5 6 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 3 fence boom≤3 3 0.83m, small vertical boom is 1.5m, landing boom is 1.6m
100*45mm 3 fence boom≤4 6 0.83m, small vertical boom is 1.5m, landing boom is 1.6m



Notice: the “Boom Height ” means height from the boom holding point to the ground.





Vehicle Barrier Gate Advantages:



1. Gate automatically open when power off, no clutch design, no need human intervention. When power on, gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special requirement,manual operation is required when power off, operating arm open and close manually also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)




Technical Parameter List



DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 65 65
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55





Packing List



Title Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit
Instruction   1 piece
