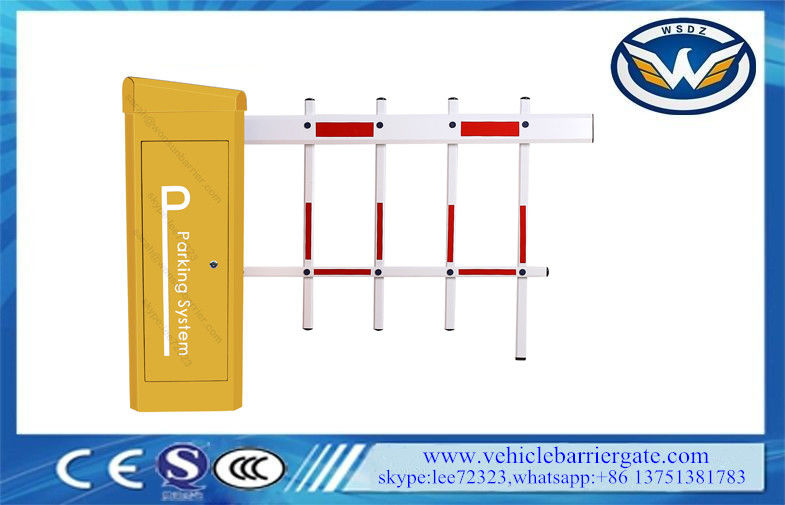

Anti Collision Fast Running Time Toll Barrier Gate With Solar Power Supply

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD300~400per unit

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

auto barrier gate system

,

security barrier gate

Name:
Fast Running Time Toll Barrier Gate Solar Power Supply 2 Year Waranty
Motor Rated Power:
50W,Max 100W
Voltage:
AC90V~AC264V,DC24V
Size:
342*312*959mm
Speed:
Adjustable
MTBF:
>5,000,000 Times
Name:
Fast Running Time Toll Barrier Gate Solar Power Supply 2 Year Waranty
Motor Rated Power:
50W,Max 100W
Voltage:
AC90V~AC264V,DC24V
Size:
342*312*959mm
Speed:
Adjustable
MTBF:
>5,000,000 Times
Description
Anti Collision Fast Running Time Toll Barrier Gate With Solar Power Supply

Fast Running Time Toll Barrier Gate Solar Power Supply 2 year Waranty





Technical Data



Anti Collision Fast Running Time Toll Barrier Gate With Solar Power Supply 0
DZ-138 barrier gate V09T
Max Boom Length and Diameter 3000mm, Ф75mm
Open/Close Time 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz
Power Consumption 100w
Machine Case Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm
Net Weight 42.6kg
Operating Temperature Range℃ -45℃~+85℃
Driving Method Servo motor
Protection System(IP) 54
Insulation Class F
Relative Humidity ≤90%
Motor No-load Speed 3000r/min
Remote Control Distance ≤100m (open, sunny weather)
Output Torque 0.86N.M*140=120N.M
Running Noise< 45dB
Surface Treatment

Outdoor metal powder

electrostatic spraying





Functions



1. Speed can be adjusted.

2. Barrier gate up &down signal relay switch output.

3. Barrier gate running state: OK signal output indicating that the gate is working properly.

5. R&G Traffic light relay switch signal output.

6. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.

7. Count mode interface.

8. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.

9. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle and the barrier gate.

10. Delay closed selection function.

11. High-sensitivity arm auto reverse function (intensity can be adjusted).

12. Parking system interface.

13.RS485 or RS232 network communication control up &down interface (no need to install communication module)

14. Anti-collision alarm signal interface.

15. Adjustable speed port (from 0.9s to 6 s)

16. High-strength precision cast steel, industry moving parts beyond the industry quality





Operation time and boom length



Boom Type(meter) Operation Time(seconds)
Fast speed boom≤2.5 0.6
Fast speed boom≤3 0.9
Common straight boom≤4.5 2.5
Common straight boom≤6 4.5
80*45mm 90°folding boom≤3 1
80*45mm 90°folding boom≤3.5 2.5
80*45mm 90°folding boom≤5 5
80*45mm 180°folding boom≤3 1
80*45mm 180°folding boom≤4 2.5
80*45mm 180°folding boom≤5 4.5
100*45mm 2 fence boom≤3.5 2.5
100*45mm 2 fence boom≤5 6
100*45mm 3 fence boom≤3 3
100*45mm 3 fence boom≤4 6









Power Supply ServoMotor Control board Speed adjustor
Anti Collision Fast Running Time Toll Barrier Gate With Solar Power Supply 1 Anti Collision Fast Running Time Toll Barrier Gate With Solar Power Supply 2 Anti Collision Fast Running Time Toll Barrier Gate With Solar Power Supply 3 Anti Collision Fast Running Time Toll Barrier Gate With Solar Power Supply 4





Packing list:





Title Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit Optional
Instruction   1 piece







Service for free:



1. Two year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed

requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.



Service for charging:



1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
