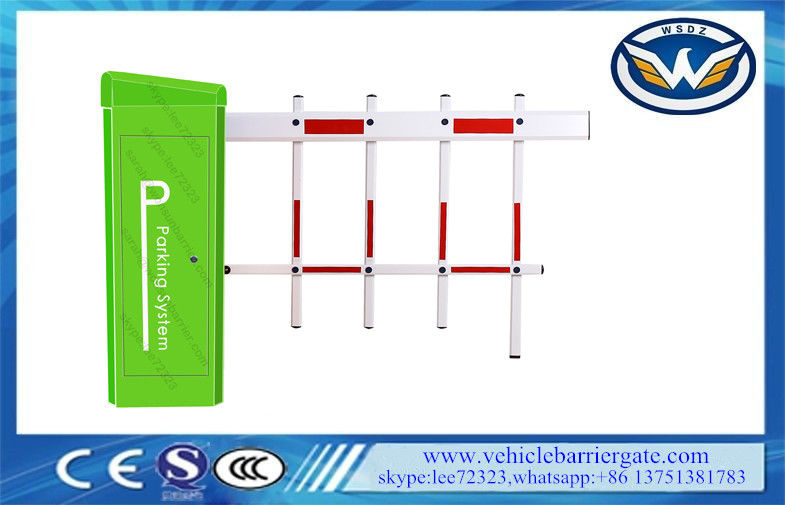

Automatic Fence Boom IP 54 Parking Barrier Gate 342*312*959mm

China Automatic Fence Boom IP 54 Parking Barrier Gate 342*312*959mm supplier
Automatic Fence Boom IP 54 Parking Barrier Gate 342*312*959mm supplier Automatic Fence Boom IP 54 Parking Barrier Gate 342*312*959mm supplier

Large Image :  Automatic Fence Boom IP 54 Parking Barrier Gate 342*312*959mm

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: DC 24V Newest Servo Motor Parking Barrier Gate Fence Boom IP 54 MTTR: >0.5/hrs
Voltage: AC90V~AC264V,DC24V Size: 342*312*959mm
Speed: 0.9sec To 6sec Swing-away Boom: Yes

DC 24V Newest Servo Motor Parking Barrier Gate Fence Boom IP 54





Features

  • The gate automatically open when the power is off, you can lock the boom at both position. When the power is on, the gate automatically reset, and the gate returns to being closed, truly unattended, fire safety standards.
  • The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable.
  • A variety of input and output modes can be selected, normally open normally closed are optional.
  • Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
  • Barrier gate up &down signal relay switch output.
  • Barrier gate running state: OK signal output indicating that the gate is working properly.
  • Barrier gate operation abnormal alarm signal output.
  • R&G Traffic light relay switch signal output.





Technical Data
Boom length 6mts
Opening/closing time 0.9sec to 6sec
Power consumption Max 100w
Drive technology Servo Motor
Voltage



24/100/240VAC,50/60Hz

Duty cycle 100%
Housing dimensions



342*312*959mm

Enclosure rating IP54
Temperature range



-45℃~+85℃

Weight Approx.43KG





Operation time and boom length



Boom Type(meter) Operation Time(seconds)
Fast speed boom≤2.5 0.6
Fast speed boom≤3 0.9
Common straight boom≤4.5 2.5
Common straight boom≤6 4.5
80*45mm 90°folding boom≤3 1
80*45mm 90°folding boom≤3.5 2.5
80*45mm 90°folding boom≤5 5
80*45mm 180°folding boom≤3 1
80*45mm 180°folding boom≤4 2.5
80*45mm 180°folding boom≤5 4.5
100*45mm 2 fence boom≤3.5 2.5
100*45mm 2 fence boom≤5 6
100*45mm 3 fence boom≤3 3
100*45mm 3 fence boom≤4 6





Parameter for the spring





Number The length of boom (L=meter) Diameter of the spring (D=mm) Link hole selection
1 2.5<L<3.5 D=4.5 Link hole 2
2 3.5≤L≤4.0 D=5.5 Link hole 1
3 4.0<L<5.5 D=6.5 Link hole 2
4 5.5≤L≤6.0 D=6.5 Link hole 1





Automatic Fence Boom IP 54 Parking Barrier Gate 342*312*959mm



Packing list:





Title Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit Optional
Instruction   1 piece





Service Item



1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instruction, without the unauthorized maintenance of the parts and the machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.

2.Lifetime charged servicing is offered.

3.Technology servicing is supplied.

*The following situations are charged for servicing (or replacement):

1.Broken by wrong installation;

2.Broken by improper voltage;

3.The surfaces of the system destroyed by wrong installation or use.

4.Broken by natural disaster.

5.Overdue.

6.Servicing items out of the promises.
