Automated IP65 Servo Motor Vehicle Barrier Gate 342*312*959mm

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

Automated IP65 Servo Motor Vehicle Barrier Gate 342*312*959mm

China Automated IP65 Servo Motor Vehicle Barrier Gate 342*312*959mm supplier
Automated IP65 Servo Motor Vehicle Barrier Gate 342*312*959mm supplier Automated IP65 Servo Motor Vehicle Barrier Gate 342*312*959mm supplier

Large Image :  Automated IP65 Servo Motor Vehicle Barrier Gate 342*312*959mm

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: Vehicle Barrier Gate Opening And Closing Times Of Minimum 0.3 S Motor Rated Power: 50W,Max 100W
Voltage: AC90V~AC264V,DC24V Size: 342*312*959mm
Speed: 0.3sec Max Length Of Arm: 6mts

Vehicle Barrier Gate Opening And Closing Times Of Minimum 0.3 s



The barrier gate can be operating out in the wind, rain, snow, ice and sub-zero temps,Working temperature:-40℃ to 85℃,IP65.when the power is off,the barrier gate arm can be locked at both positions,when the power is on, the barrier gate will automated detect,reset and work normally.





Technical Data:



Max Boom Length and Diameter

6000mm, Ф75mm

Power Supply

24/100/240VAC,50/60Hz

Power Consumption

Max 100w

Machine Case Size(W*D*H)

342*312*959mm

Driving Method

Servo motor

Open/Close Time

0.9sec,2sec,4sec,6sec

Insulation Class

F





Functions



1. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable.

2. A variety of input and output modes can be selected, normally open normally closed are optional.

3. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

4. Speed can be adjusted from 0.9sec to 6sec.





Operation time and boom length



Boom Type(meter) Operation Time(seconds)
Fast speed boom≤2.5 0.6
Fast speed boom≤3 0.9
Common straight boom≤4.5 2.5
Common straight boom≤6 4.5
80*45mm 90°folding boom≤3 1
80*45mm 90°folding boom≤3.5 2.5
80*45mm 90°folding boom≤5 5
80*45mm 180°folding boom≤3 1
80*45mm 180°folding boom≤4 2.5
80*45mm 180°folding boom≤5 4.5
100*45mm 2 fence boom≤3.5 2.5
100*45mm 2 fence boom≤5 6
100*45mm 3 fence boom≤3 3
100*45mm 3 fence boom≤4 6





Packing list:





Title Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit Optional
Instruction   1 piece

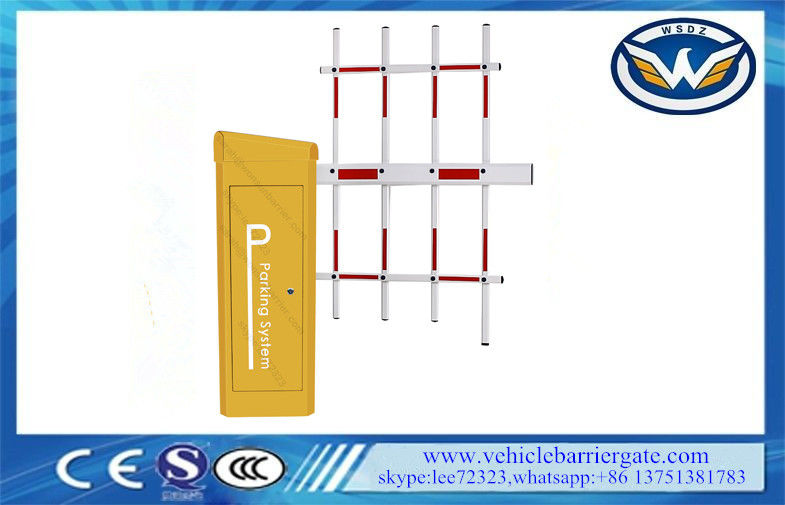

 Automated IP65 Servo Motor Vehicle Barrier Gate 342*312*959mm



Service Item



1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instruction, without the unauthorized maintenance of the parts and the machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.

2.Lifetime charged servicing is offered.

3.Technology servicing is supplied.

*The following situations are charged for servicing (or replacement):

1.Broken by wrong installation;

2.Broken by improper voltage;

3.The surfaces of the system destroyed by wrong installation or use.

4.Broken by natural disaster.

5.Overdue.

6.Servicing items out of the promises.
