High Strength Adjustable DC 24V Servo Motor Toll Barrier Gate For Highway

China High Strength Adjustable DC 24V Servo Motor Toll Barrier Gate For Highway supplier
High Strength Adjustable DC 24V Servo Motor Toll Barrier Gate For Highway supplier High Strength Adjustable DC 24V Servo Motor Toll Barrier Gate For Highway supplier

Large Image :  High Strength Adjustable DC 24V Servo Motor Toll Barrier Gate For Highway

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description

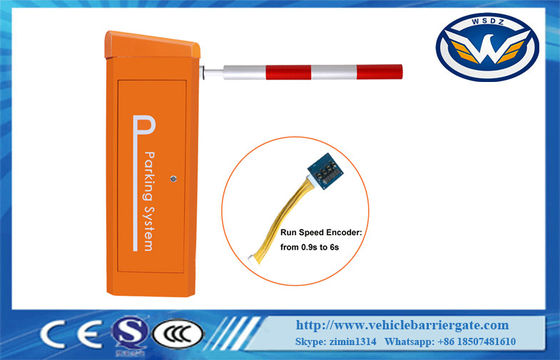

Operation Time: 0.3,0.6,0.9,2,4sec Run Speed Adjustable MTBF:: >5000,000 Times
Warranty:: 2 Years Power Consumption: Max.150W/100w
Product Name: 0.6s Fast Speed Highway Toll Station DC 24V Servo Motor Toll Barrier Gate Protection System(IP): 65

0.6s Fast Speed Highway Toll Station DC 24V Servo Motor Toll Barrier Gate



Toll Barrier Specifications:



Open/Close Time 0.6sec, 0.9sec,2.5sec,4.5sec
Max length of arm 6mts
Power Supply 24/100/240VAC,50/60Hz
Power Consumption 100w
Machine Case Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm
Net Weight 42.6kg
Operating Temperature Range℃ -45℃~+85℃
Driving Method Servo motor
Protection System(IP) 54
Insulation Class F
Relative Humidity ≤90%
Motor No-load Speed 3000r/min
Remote Control Distance ≤100m (open, sunny weather)
Output Torque 0.86N.M*140=120N.M
Running Noise< 45dB



DZ-138 Barrier Advanced Functions:


1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,

gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special

requirement, manual operation is required when power off, operating arm open and close manually also can

be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy

to break, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed are optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves

prominent place to install.

5. Closing speed can be adjusted.

6. Barrier gate up &down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. R&G Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the

triple push button, software or remote control to issue an open command, the gate will give priority to the

implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to

avoid damage to the vehicle, and barrier gate machine.

14. Delay closed selection function.

15. High-sensitivity arm auto reverse function (intensity can be adjusted).

16. Parking system interface.

17.RS485 or RS232 network communication control up &down interface (no need to install communication module)

18. Anti-collision alarm signal interface.

19. Adjustable speed port (from 0.9s to 10 s)

20. High-strength precision cast steel, industry moving parts beyond the industry quality





DZ Controller Function Instruction:



1. NO/NC mode selection, in the dip switch 1, ON for NC, OFF for NO.

2. Self-locking when power off or gate automatically open selection. In dip switch 2, ON is for automatic opening when power off;

3. Automatic reverse or stop selection when meets external obstacle. In dip switch 3, ON is for automatic stop and OFF is for automatic reversing;

4. Auto closing speed adjustment selection, in the dip 4, 0.9s and 1.3s for option. ON is for 0.3s.

5. Delay automatic closed selection. Dip switch5,6,7,8 are for it and the delaying time is 1s,2s,3s,4s,5s,8s,10s,15s,20s,25s,30s,35s,40s,50s,60s for option.

6. The boom angle adjustment, suitable for some areas that the boom can’t reach the vertical position caused by obstacle.

Adjustable for 60°, 70°, 80° and 90°. And the dip switch is another independent one (1 2 switch).

7. Maintenance mode switch, convenient for possible repairing and adjusting.

8. RS485 interface, can connect with computer, check the barrier gate state and alarm information.

9. Parking lot open/close control signal and remote control open/close signal are separate. Arm opening have memory

function, Number of pulse arm opening, and closed after number of cars (must be equipped with a vehicle detector)

10. Emergent stop input signal function.

11. Arm swing out signal input function.

12. Alarm information output function.

13. Barrier gate OK signal output function.

14. All input ports are optoelectronic isolation, the input voltage range is DC5 ~ 24V

15. Vehicle detector signal input and infrared signal input, that is, use the output COM, NC of the loop detector

(normally the No.4 and No.11, specially related with detector, the barrier gate not respond to closing command

when the coil is not connected).The infrared detector uses the NPN type.




Packing List



Title Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit
Instruction   1 piece




Technical Support



If the operational failure can’t be handled by your technical staff, please contact our authorized service

representative or professional assistance.



Please provide the barrier gate model, product serial number, version and other information when contact us

for technical support services, which you can find in barrier gate model plate.





Service:



1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of

complying with the operating instruction, without the unauthorized maintenance of the parts and the machine

have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from the

date of use for a period of two years or from the date of shipment up to three years including all mechanical

and electronic components other than special consumables.

2.Lifetime charged servicing is offered.

3.Technology servicing is supplied.



*The following situations are charged for servicing (or replacement):

1.Broken by wrong installation;

2.Broken by improper voltage;

3.The surfaces of the system destroyed by wrong installation or use.

4.Broken by natural disaster.

5.Overdue.

6.Servicing items out of the promises.





Why choose us:

1. Our Factory has 8 years OEM/ODM experiences in the line of barrier gate.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
