Automatic PMSM Motor RS485 Vehicle Barrier Gate Maintenance Free

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD300~400per unit

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

car parking management system

,

Automatic RS485 Vehicle Barrier Gate

Name:
More Than 10 Million Operation Times Vehicle Barrier Gate Maintenance-Free
Motor Rated Power:
50W,Max 100W
Voltage:
AC90V~AC264V,DC24V
Size:
342*312*959mm
RS485:
Yes
Max Length Of Arm:
6mts
Name:
More Than 10 Million Operation Times Vehicle Barrier Gate Maintenance-Free
Motor Rated Power:
50W,Max 100W
Voltage:
AC90V~AC264V,DC24V
Size:
342*312*959mm
RS485:
Yes
Max Length Of Arm:
6mts
Description
Automatic PMSM Motor RS485 Vehicle Barrier Gate Maintenance Free

More than 10 Million Operation Times Vehicle Barrier Gate Maintenance-Free





Functions and Features



1. The gate automatically open when the power is off, no clutch design, no need human intervention. When the power is on, the gate automatically reset, and the gate returns to being closed, truly unattended, fire safety standards. If there is special need, manual operation is required when the power if off, the operating arm can open and close manually. Can also set up the control board DIP switch, which will ensure the system can be used at any time

2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed are optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Speed can be adjusted.

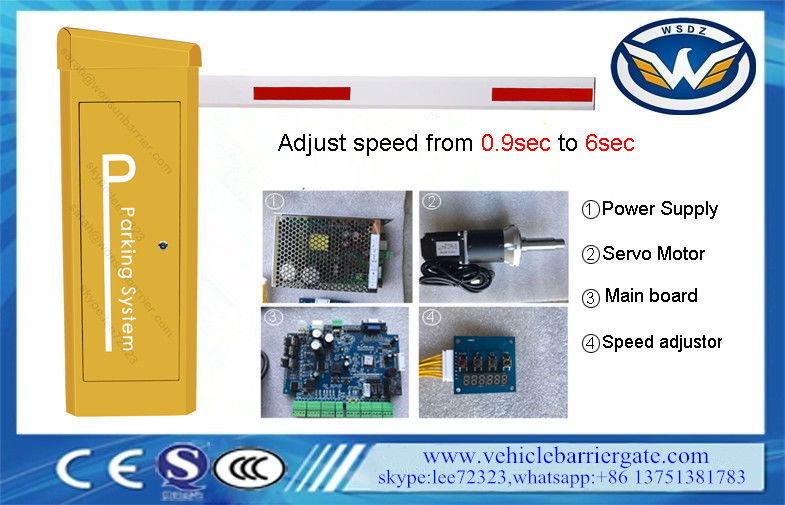

The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), adjust to the global voltage, high-speed operation and rapid response, it will not overheat after 24 hours, frequent operation, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automated and intelligent, and the barrier arm open/close is fast and smooth, easy to use and safe.

Automatic PMSM Motor RS485 Vehicle Barrier Gate Maintenance Free 0





Technical Data





DZ ControllerAutomatic PMSM Motor RS485 Vehicle Barrier Gate Maintenance Free 1
Voltage(±10%) 100-240 volt
Frequency(Hz) 50-60
Max Power Consumption(watt) 8
Fuse F5AH
Control Voltage 24V DC/max.3000mA
Input-end Number 8
Open Collector Output Number 2
Zero Level Reversal Relay Number 3
Operating Temperature Range℃ -45℃~+85℃
Protection System(IP) 20
Weight(gram) 450gram
Dimension mm(L-W-H)





DZ-138 barrier gate
Max Boom Length and Diameter 2.5mts
Open/Close Time 0.6sec
Power Supply 24/100/240VAC,50/60Hz
Power Consumption max.150W
Machine Case Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm
Net Weight 43kg
Operating Temperature Range℃ -45℃~+85℃
Driving Method Servo motor
Protection System(IP) 54
Insulation Class F
Relative Humidity ≤90%
Motor No-load Speed 3000r/min
Remote Control Distance ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M
Running Noise< 45dB
Surface Treatment Outdoor metal powder electrostatic spraying
Automatic PMSM Motor RS485 Vehicle Barrier Gate Maintenance Free 2









Packing list:



Title

Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit Optional
Instruction   1 piece





RFQ:



1.How about the after-sales service, how long the warranty? How to warranty?



The core part of the retractable door is motor, we are committed the motor's warranty is 2 years, other electronic parts is 1 year, we are specialized in manufacturing electric retractable gate and we have the strength to solve all your problems (In fact,quality of our products is quite stable, there is almost no rework problems within a few years)



2.How about the terms of payment?



Paid 30% of the sales proceeds as the advance payment,and the balance paid by T/T or L/C.





3. First time import, how can i believe that you would send product?



A: We are verified company by Everychina, to make transaction success .



4.How to import your machines?



1. We will prepare barrier and shipment for you after payment;

2. We will give you bill of loading after barrier depart our shipping port;

3. Our shipping agent will contact you when barrier arrival ;

4. You can pick up barrier by bill of loading .
