RS485 Computer Control Automatic Parking Gate Servo Barrier Gate CE Approved

China RS485 Computer Control Automatic Parking Gate Servo Barrier Gate CE Approved supplier
RS485 Computer Control Automatic Parking Gate Servo Barrier Gate CE Approved supplier RS485 Computer Control Automatic Parking Gate Servo Barrier Gate CE Approved supplier

Large Image :  RS485 Computer Control Automatic Parking Gate Servo Barrier Gate CE Approved

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: RS485 Computer Control Parking Barrier Gate CE Approved DC Motor Motor Rated Power: 50W,Max 100W
Voltage: AC90V~AC264V,DC24V Weight: 42.6KG
RS485: Yes Warranty: 2 Years

RS485 Computer Control Parking Barrier Gate CE Approved DC Motor





Quick Introdcution:



The DZ-138 servo barrier gate series, which researched developed and manufactured by our company, adopts international advanced technology, mechanical and electrical integrated design. Planetary gear drive, high torque, un-blocked, oil tight, no noise, automatically unlocked when the power is off, with 10 million operation times.





Technical Parameter



Open/Close Time 0.9sec,2.5sec,4.5sec
Max length of arm 6mts
Power Supply 24/100/240VAC,50/60Hz
Power Consumption 100w
Machine Case Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm
Net Weight 42.6kg
Operating Temperature Range℃ -45℃~+85℃
Driving Method Servo motor
Protection System(IP) 54
Insulation Class F
Relative Humidity ≤90%
Motor No-load Speed 3000r/min
Remote Control Distance ≤100m (open, sunny weather)
Output Torque 0.86N.M*140=120N.M
Running Noise< 45dB
Surface Treatment Outdoor metal powder electrostatic spraying





Advanced Functions:



  1. Advanced servo control system, high speed and precise.
  2. Low-power servo motor, truly maintenance-free, high durability and energy saving.
  3. Zero speed (0 rpm) constant torque output, no need worry about external force to lever the boom.
  4. ​No position sensor, each stop with the same accuracy. Pair using is fully synchronized.
  5. ​No anti-shock rubber, no impact, no bounce, free adjustment.
  6. ​No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).
  7. ​No key-way design, no longer to worry about the gap between the key-way and the key, which is a hidden danger.
  8. ​No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.

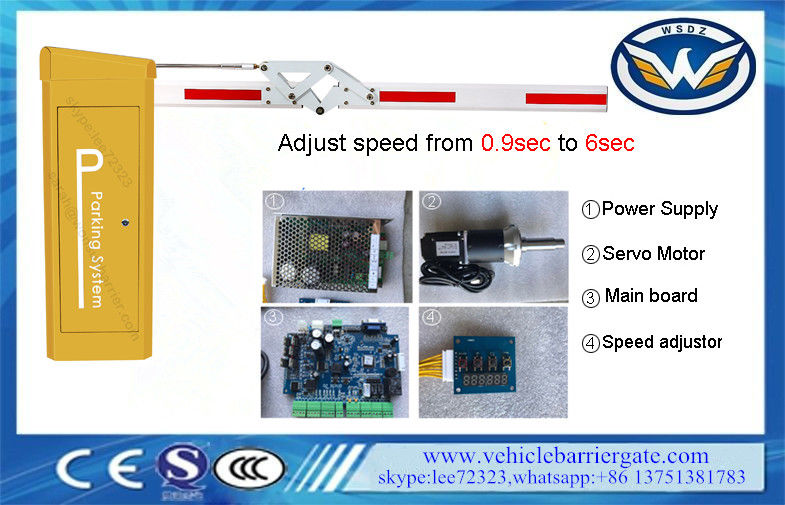

RS485 Computer Control Automatic Parking Gate Servo Barrier Gate CE Approved

RS485 Computer Control Automatic Parking Gate Servo Barrier Gate CE Approved



DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55





Packing list:



Title

Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit Optional
Instruction   1 piece





RFQ:



1.How about the after-sales service, how long the warranty? How to warranty?



The core part of the retractable door is motor, we are committed the motor's warranty is 2 years, other electronic parts is 1 year, we are specialized in manufacturing electric retractable gate and we have the strength to solve all your problems (In fact,quality of our products is quite stable, there is almost no rework problems within a few years)



2.How about the terms of payment?



Paid 30% of the sales proceeds as the advance payment,and the balance paid by T/T or L/C.





3. First time import, how can i believe that you would send product?



A: We are verified company by Everychina, to make transaction success .



4.How to import your machines?



1. We will prepare barrier and shipment for you after payment;

2. We will give you bill of loading after barrier depart our shipping port;

3. Our shipping agent will contact you when barrier arrival ;

4. You can pick up barrier by bill of loading .
