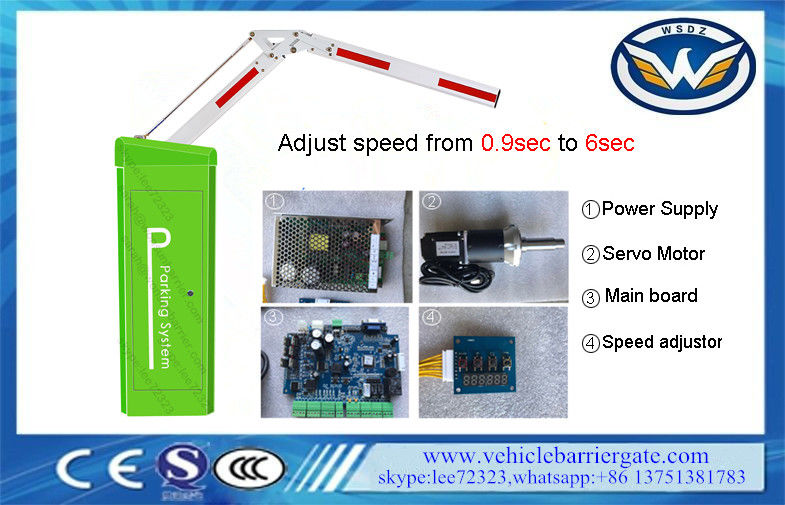

High Speed Swing Off Automatic Boom Barrier With Folding Beam

China High Speed Swing Off Automatic Boom Barrier With Folding Beam supplier
High Speed Swing Off Automatic Boom Barrier With Folding Beam supplier High Speed Swing Off Automatic Boom Barrier With Folding Beam supplier

Large Image :  High Speed Swing Off Automatic Boom Barrier With Folding Beam

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD200~250 per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Detailed Product Description
Name: Fast Speed Swing Off Automatic Boom Barrier With Folding Beam Motor Rated Power: 50W,Max 100W
Voltage: AC90V~AC264V,DC24V Remote Control Distance: <100m
MTBF: >5000,000 Times Warranty: 2 Years

Fast Speed Swing Off Automatic Boom Barrier With Folding Beam





Introduction:



The DZ-138 servo barrier gate series, which researched developed and manufactured by our company, adopts international advanced technology, mechanical and electrical integrated design. Planetary gear drive, high torque, un-blocked, oil tight, no noise, automatically unlocked when the power is off, with 10 million operation times. The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), adjust to the global voltage, high-speed operation and rapid response, it will not overheat after 24 hours, frequent operation, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automated and intelligent, and the barrier arm open/close is fast and smooth, easy to use and safe.





Data sheet



DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54



Program 1



The barrier gate can be controlled by two-key push button and an impulse will trigger the operation relay.

Connecting GND and COM, 24V with UP is for machine opening, 24V with Down is for machine closing. Other accessories interface input available, like IR sensor and loop detector signal.



Program 2



The barrier gate can be controlled by remote controller or GSM gate opener.



Connecting the antenna receiver GND to COM on the board, Remote-up is for opening and Remote-down is for closing.



If the remote control receiver is non-electric relay signal, connecting GND and COM first, the 24V connecting with Remote-up is for opening and 24V connecting with Remote-down is for closing.



Program 3



The barrier gate can be controlled by gate photocell(IR sensor) or loop detector for automatic opening and closing. There are other signal input as emergency stop and alarm signal. The connection is as program 1 mentioned.



Program 4



Boom-drop signal input: when the boom is crashed by passing vehicle, the barrier gate will stop to run with a warning output.





Advanced Features



* Low-power servo motor, truly maintenance-free, high durability and energy saving.



* No position sensor, each stop with the same accuracy. Pair using is fully synchronized.



* No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).



* No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.



* Excellent waterproof, dust-proof performance, the whole product protection grade is IP65.



* Can work with DC24V battery, can be combined with solar energy, wind power, suitable places lack of AC power.



* Boom rise automatically when power off, comply with the fire safety requirements.



* Long time maintenance-free, greatly reducing maintenance costs.



* During the course of the movement without any mechanical impact or shock absorption, the highest reliability, the longest service life.



* Direction exchange is easy.



* Free debugging during production and installation, greatly reduce the maintenance and labor costs.





Operation Time and Boom Length Configuration Parameter



Boom Type(meter) Operation Time(seconds) Boom Height(meter)
Fast speed boom≤2.5 0.6 0.83
Fast speed boom≤3 0.9 0.83
Common straight boom≤4.5 2.5 0.83
Common straight boom≤6 4.5 0.83
80*45mm 90°folding boom≤3 1 0.83
80*45mm 90°folding boom≤3.5 2.5 0.83
80*45mm 90°folding boom≤5 5 0.83
80*45mm 180°folding boom≤3 1 0.83
80*45mm 180°folding boom≤4 2.5 0.83
80*45mm 180°folding boom≤5 4.5 0.83
100*45mm 2 fence boom≤3.5 2.5 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 2 fence boom≤5 6 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 3 fence boom≤3 3 0.83m, small vertical boom is 1.5m, landing boom is 1.6m
100*45mm 3 fence boom≤4 6 0.83m, small vertical boom is 1.5m, landing boom is 1.6m

High Speed Swing Off Automatic Boom Barrier With Folding Beam


RFQ



1.Q: How long will your barrier working?

A:barrier life span more than 10 years.



2.Q: What should we do if there have problems during using?

A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.



3.Q: First time import, how can i believe that you would send product?

A: We are verified company by Everychina, to make transaction success .



4.Q:How to import your machines?

1. We will prepare barrier and shipment for you after payment;

2. We will give you bill of loading after barrier depart our shipping port;

3. Our shipping agent will contact you when barrier arrival ;

4. You can pick up barrier by bill of loading .
