Anti Smashing Aluminum IP65 MTBF Full Intelligent Barrier RS485 / RS232

China Anti Smashing Aluminum IP65 MTBF Full Intelligent Barrier RS485 / RS232 supplier
Anti Smashing Aluminum IP65 MTBF Full Intelligent Barrier RS485 / RS232 supplier Anti Smashing Aluminum IP65 MTBF Full Intelligent Barrier RS485 / RS232 supplier

Large Image :  Anti Smashing Aluminum IP65 MTBF Full Intelligent Barrier RS485 / RS232

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD200~250 per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Detailed Product Description
Name: 0.6S Fast Speed 10 Million Times MTBF Full Intelligent Barrier Gate Motor Rated Power: 50W,Max 100W
Voltage: AC90V~AC264V,DC24V Working Environment: -40 ℃ ~75 ℃
MTBF: >5000,000 Times MTTR: <0.5Hrs

0.6S Fast Speed 10 Million Times MTBF Full Intelligent Barrier Gate





Quick Information

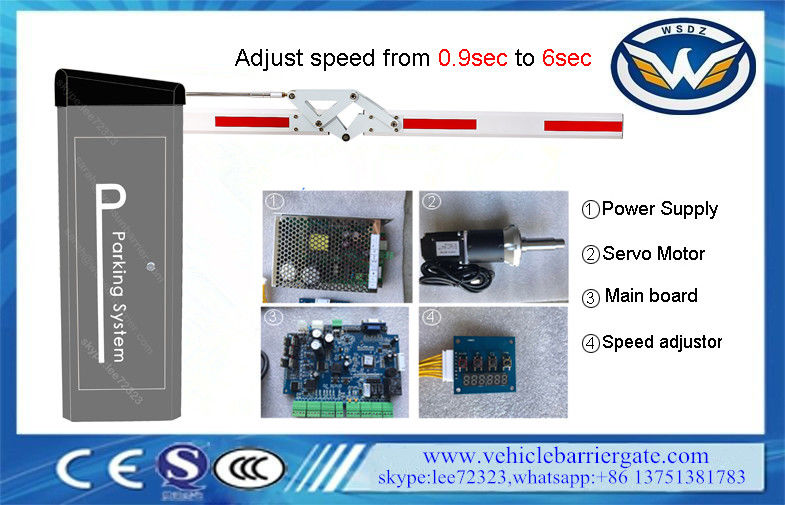

1.Fast speed, can be changed from 0.9sec to 6sec.
2.Double safety limit
3.Three operation modes: Remote control,push button,manually operation.
4.Die-casting aluminum alloy motor,Waterproof,anti-aging ,Anti-sunshine .
5.runs stable and reliable.





Data sheet





Max boom length 6 meters
Opening time
0.6sec to 6sec
Power
Max 100w
Housing Material
Powder-coated steel/ Aluminum
Net weight (no boom)
43KG
MTBF
10 million times
Working temperature
-40°C~+50°C
Protection grade
IP65
Driving unit
Servo motor



Function Description:



1.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,

restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when

power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Closing speed can be adjusted, from 0.9sec to 6sec

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,

software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle

and barrier gate machine.

14. Delay down selection function.

15. high sensitivity arm auto reverse function (intensity can be adjusted)

16. Parking system interface

17.RS485 or RS232 network communication control up&down interface (no need to install communication module)

18. Anti-collision alarm signal interface.

19. Arm direction can be changed easily

20. Adjustable speed port (S curve adjustment)

21. High-strength precision cast steel, industry moving parts beyond the industry quality







Anti Smashing Aluminum IP65 MTBF Full Intelligent Barrier RS485 / RS232
