IP65 24V DC Vehicle Barrier Gate / Security Boom Barrier Brushless Servo Motor

China IP65 24V DC Vehicle Barrier Gate / Security Boom Barrier Brushless Servo Motor supplier
IP65 24V DC Vehicle Barrier Gate / Security Boom Barrier Brushless Servo Motor supplier IP65 24V DC Vehicle Barrier Gate / Security Boom Barrier Brushless Servo Motor supplier IP65 24V DC Vehicle Barrier Gate / Security Boom Barrier Brushless Servo Motor supplier

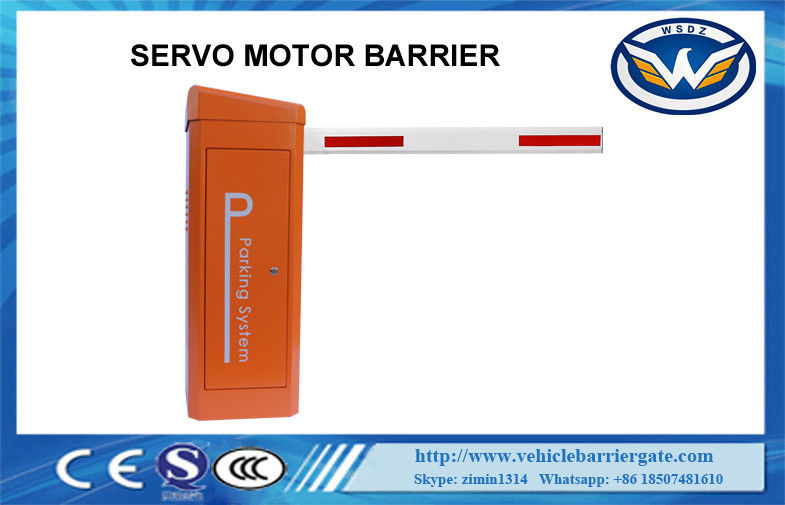

Large Image :  IP65 24V DC Vehicle Barrier Gate / Security Boom Barrier Brushless Servo Motor

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Operation Time: 0.3,0.6,0.9,2,4sec Working Environment Temperature: -40 ℃ ~ 85 ℃
Rated Voltage:: AC100V ~ AC264V, DC24V Product Name: IP65 Brushless Servo Motor 24V DC Motor Vehicle Barrier Gate
Color: Grey, Yellow, Orange, Dark-green Lifetime:: More Than 10 Million Or 10 Years

IP65 24V DC Vehicle Barrier Gate / Security Boom Barrier Brushless Servo Motor


Vehicle Barrier Functions advanced features:

1)More than 50,000 operation times per day
2)Speed adjustable from 0.6s to 4s.
3)When power off, barrier gate will open automatically,no need manual release,Self-detect and work automatically when power on.
4)Motor will NOT getting hot after continuous long run.NO noise when operating
5)Strength can be adjustable for auto reverse to make sure cause less damges on the vehicle.
6)Internal RS 485work with software to connect your computer.
7)Power supply can connect with backup battery or solar power.
8)0.9s can work with 3m straight arm or 3m 90 degree folding arm.
9)Free debugging,maintenance-free.
10)Can be install at both sides,LEFT Or RIGHT.
11)Lifetime warranty for motor, 2 years warranty for rest parts.


Technical data:

arm length:2000mm-6000mm
opening and closing time:≤ 0.6s, 0.9s, 2s, 4s
Rated voltage:AC100V ~ AC264V, DC24V
Frequency:50Hz ~ 60Hz
Motor rated power:50W, the maximum power of 100W
Working environment temperature:-40 ℃ ~ 75 ℃
Power:standby ≤ 8W, run ≤ 100W
Dimensions (W * D * H):342 * 312 * 959mm
Lifetime:more than 10 million or 10 years
MTTR:<0.5 hours
MTBF:> 5 million times
Protection degree:IP65
Relative humidity:≤ 90%
Motor no-load speed:3000 r / min
Remote control distance:≤ 100 meters
Longest ARM length:6 meters
Output torque:0.86N.M * 140 = 120N.M.
running noise:< 50dB
Barrier N.W42.6kg
Machine core N.W22.1kg
Surface treatmentOutdoor metal powder, electrostatic spraying



Function Description:

1.When Power off, gate automatically open, no clutch design, no need human intervention. When power
on, gate automatically reset,
restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual
operation is required when
power off . Operating arm open and close by hand also can be realized by setting up control board DIP
switch, which ensure that the system can be used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,
safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator
through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the
opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing
out to avoid damage to the vehicle
and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication
module)
18. Anti-collision alarm signal interface.
19. Arm direction can be changed easily
20. Adjustable speed port (S curve adjustment)
21. High-strength precision cast steel, industry moving parts beyond the industry quality


Each barrier will include:



1 pcs Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book
