Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material

China Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material supplier
Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material supplier Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material supplier Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material supplier

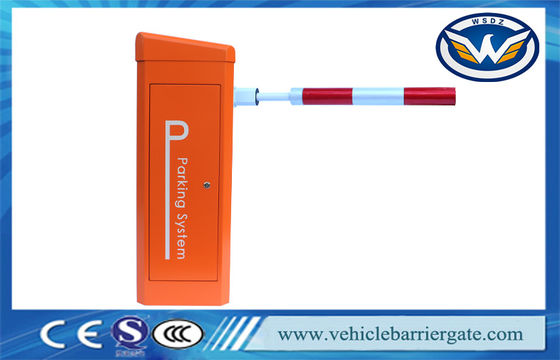

Large Image :  Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE/SGS/ISO
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Product Name: Bluetooth Serve Motor Driveway Barrier Gate With 2mm Cold-roll Steel Sheet Material Color: Orange,yellow,green,gray,optional
Material: 2mm Cold-roll Steel Sheet Speed Time: 0.3s/0.6s/0.9s/2s/4s
Power Supply: AC90V`AC264V,50/60HZ MTBF: >5 Million Times
Net Gross: 42.6KG Keywords: Serve Motor Barrier Gate

Bluetooth Serve Motor Driveway Barrier Gate With 2mm Cold-roll Steel Sheet Material



    Wonusn patented 138 series serve motor barrier gate,combining permanent-magnet synchrounous serve motor(PMSM motor) with high quality aluminum alloy press forming housing & well-designed gear reducer,the motor features high power density,low noise,small vibration,high efficiency and fast response as special drive applied.Compared with traditional asynchronous motor,the serve motor has such advantages as higher efficiency,higher power factor,lighter,low temprerature rise,better power-saving,by which it improves power grid quality factor,and brings current power grid capacity into full play,thus save investment on power grid.The motor drive employees serve motion control algorithm to accurately position open/colse position and motion curve track through encoder,able to be widely use for expressway toll station,bus station,shopping mail,airport,hospital.,etc





Product Specifications



Arm Length Max6M
Opening And Closing Time 0.3S,0.6S,0.9S,3S,4S
Rated Voltage AC100V~AC264V,DC24V
Frequency 50Hz~60Hz
Motor Rated Power 50W,Max 100W
Working Environment -40 ℃ ~85 ℃
Power Standby≤8W,run≤100W
Housing Size(H*W*H*W) 342*312*959*2mm
Lifetime More than 10 million operation time or 10 years
MTTR <0.5Hrs
MTBF >500 million operation times
Protection Degree IP65
Relative Humidity ≦ 90%
Motorno-load speed 3000r/min
Remote Distance ≦ 100m
Output Torque 0.86N.M*140=120N.M
Running Noise: <60dB
Net Weight 42.6KG

Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material





Our Advantages


1.power off automatic gate, no clutch design, without human intervention.

Incoming call automatic reset, restore to close state.If you have t special need for manual intervention,you can complete the manual open/close boom by setting the control board DIP switch,to ensure the system can be used normally anytime.

2.use the single compression spring balance device,no noise,not easy to fatigue and break ,easy to adjust,safe and reliable.

3.a variety of input and output modes can be selected, often open and close can be selected.

4.rod angle can be adjusted from 60~90 degrees, 10 degree resolution.

5.closing speed can be adjusted, 0.9s, 1.3s.

6.open/close signal relay switch output.

7.barrier gate running state signal OK output.

8.alarm signal output.

9.R&G traffic light relay signal outpue.

10.external vehicle detection anti-hit interface,infrared sensor anti-hit interface.

11.counting mode interface.

12.preferential anti-hit function.

No matter the barrier gate is in which state, when the operator gives a opening boom command through the triple key, software or remote control button, the barrier gate will give priority to the implementation of the opening operation.

13.anti-hit and rod droped protection function.When the car hits boom,the boom will be droped automatical to avoid the damege on the car and barrier gate.

14.delay rod closing optional function.

15.high sensitive auto-reverse function.

16.parking lot system interface.

17.RS285 or RS232 network communication control open/close interface.(no need to install commnunication moudle)

18.anti-crash alarm signal interface.

19.direction exchange is easy.

20.adjustable speed port.

21.high strength precision cast steel parts





Machine Core&Control Board Functions


Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material
Bluetooth Serve Motor DToll Barrier Gate With 2mm Cold roll Steel Sheet Material
