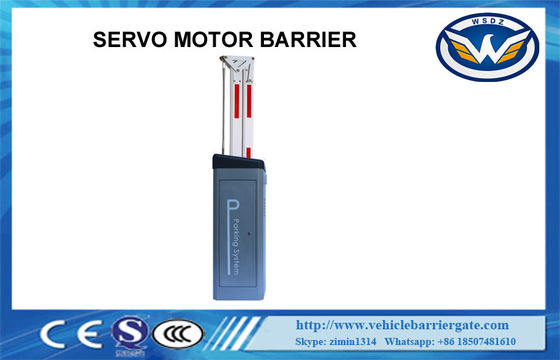

Large Image :  Servo Motor 24V DC Backup Solar Power Toll Barrier Gate System , CE Approval

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Cabinet Material: 2.0mm Cold Roller Steel Plate Lifetime:: More Than 10 Million Or 10 Years
Operation Time: 0.3,0.6,0.9,2,4sec Working Environment Temperature: -40 ℃ ~ 75 ℃
Rated Voltage:: AC100V ~ AC264V, DC24V Product Name: New Design Servo Motor 24V DC Backup Solar Power Toll Barrier Gate System

New Design Servo Motor 24V DC Backup Solar Power Toll Barrier Gate System





Toll Barrier Functions Introduction:



1.When Power off, gate automatically open, no clutch design, no human intervention. When power on,

gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If

special requirement, manual operation is required when power off . Operating arm open and close by

hand also can be realized by setting up control board DIP switch, which ensure that the system can be

used at any time.

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,

safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves

prominent place to install.

5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.

12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator

through the triple push button, software or remote control to issue a gate arm up, the gate will give priority

to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing

out to avoid damage to the vehicle and barrier gate machine.

14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface

17.RS485 or RS232 network communication control up&down interface (no need to install communication

module)

18. Anti-collision alarm signal interface.
19. Arm direction change is simple.
20. Adjustable speed port (S curve adjustment)





Technical data:



arm length: 2000mm-6000mm
opening and closing time: ≤ 0.6s, 0.9s, 2s, 4s
Rated voltage: AC100V ~ AC264V, DC24V
Frequency: 50Hz ~ 60Hz
Motor rated power: 50W, the maximum power of 100W
Working environment temperature: -40 ℃ ~ 75 ℃
Power: standby ≤ 8W, run ≤ 100W
Dimensions (W * D * H): 342 * 312 * 959mm
Lifetime: more than 10 million or 10 years
MTTR: <0.5 hours
MTBF: > 5 million times
Protection degree: IP65
Relative humidity: ≤ 90%
Motor no-load speed: 3000 r / min
Remote control distance: ≤ 100 meters
Longest ARM length: 6 meters
Output torque: 0.86N.M * 140 = 120N.M.
running noise: < 50dB
Barrier N.W 42.6kg
Machine core N.W 22.1kg
Surface treatment Outdoor metal powder, electrostatic spraying





How to Contact Seller?



Email: keira@wonsunbarrier.com

Whatsapp: +86 185 0748 1610

Skype: zimin1314





High End Servo Motor Barrier Description:



The new gate uses international leading mechanical and electrical integration design, the new arc-shaped sway crank

and connecting rod design, no need to install anti-overshoot device. Mechanical clutch device achieve arm up& down

by manual operation when power off, and also can be self-locking when arm up and down. It is more simple and reliable.

Running in place to form a sight alignment, so called as three-dimensional structure, so that the lever permanently keeps

fast and smooth operation in 90 degrees. No need mechanical shock absorber. Drive input: Adopt DC 24V permanent

magnet synchronous motor (PMSM motor) With such characteristics that self-locking when power on, unlock when power

off. Motor uses rare earth materials, low power consumption, light weight, low temperature rise, large torque, running

normal below 40 degrees of ultra-low temperature environment. Two times more torque than conventional asynchronous

motor, with energy saving features. Transmission output: Using the high precision planetary tooth structure reducer,

convenient for left and right interchange, low noise, high efficiency, output large torque, not block, oil tight. Forced to

lift the arm doesn’t damage the reducer, truly durable, long maintenance-free greatly reduces the user using cost, High,

End-level servo drive control system, 5000-line encoder feedback the data limit algorithm, the precision limit is exact in

every particular, advanced constant torque intelligent follow-up algorithm. The torque output follows the arm different

operating angle at constant speed, no shaking, keep fast and steady. Super-fast response time algorithm, the motor

can complete the precise limit of 90 degree lifting and closing with 15 milliseconds at the speed of 3000 RPM. Special

hf power supply, arm can be opened automatically when power off, is general global voltage standard,AC90V

50/60Hz-AC264V 50/60Hz no municipal electricity place can be connected with DC24V battery for more than 8000 times.

The battery can be connected with solar and wind power.
