24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design

China 24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design supplier
24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design supplier 24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design supplier 24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design supplier 24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design supplier 24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design supplier

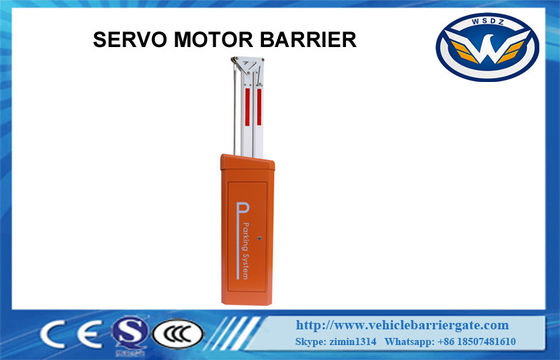

Large Image :  24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Working Environment Temperature: -40 ℃ ~ 75 ℃ Cabinet Material: 2.0mm Cold Roller Steel Plate
Operation Time: 0.3,0.6,0.9,2,4sec Rated Voltage:: AC100V ~ AC264V, DC24V
Product Name: China Servo Motor Gate Arm Barrier 24V DC Motor Traffic Barrier Gate Lifetime:: More Than 10 Million Or 10 Years

China Servo Motor Gate Arm Barrier 24V DC Motor Traffic Barrier Gate





Functions introduction:



1.When Power off, gate automatically open, no clutch design, no human intervention. When power on,

gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If

special requirement, manual operation is required when power off . Operating arm open and close by

hand also can be realized by setting up control board DIP switch, which ensure that the system can be

used at any time.

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,

safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves

prominent place to install.

5. Closing speed can be adjusted, 0.9S, 1.3S.

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator

through the triple push button, software or remote control to issue a gate arm up, the gate will give priority

to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing

out to avoid damage to the vehicle and barrier gate machine.

14. Delay down selection function.

15. high sensitivity arm auto reverse function (intensity can be adjusted)

16. Parking system interface

17.RS485 or RS232 network communication control up&down interface (no need to install communication

module)

18. Anti-collision alarm signal interface.

19. Arm direction change is simple.

20. Adjustable speed port (S curve adjustment)

21. High-strength precision cast steel, industry moving parts beyond the industry quality

24V DC Motor Traffic Barrier Gate / Automatic Arm Barrier No Clutch Design





Technical data:



Model DZ-138 automatic barrier gate
arm length: 2000mm-6000mm
opening and closing time: ≤ 0.6s, 0.9s, 2s, 4s
Rated voltage: AC100V ~ AC264V, DC24V
Frequency: 50Hz ~ 60Hz
Motor rated power: 50W, the maximum power of 100W
Working environment temperature: -40 ℃ ~ 75 ℃
Power: standby ≤ 8W, run ≤ 100W
Dimensions (W * D * H): 342 * 312 * 959mm
Lifetime: more than 10 million or 10 years
MTTR: <0.5 hours
MTBF: > 5 million times
Protection degree: IP65
Relative humidity: ≤ 90%
Motor no-load speed: 3000 r / min
Remote control distance: ≤ 100 meters
Longest ARM length: 6 meters
Output torque: 0.86N.M * 140 = 120N.M.
running noise: < 50dB
Barrier N.W 42.6kg
Surface treatment Outdoor metal powder, electrostatic spraying





Our service:



Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.



Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
