Backup Solar Power Vehicle Barrier Gate Arm IP65 24V DC Servo Motor

China Backup Solar Power Vehicle Barrier Gate Arm IP65 24V DC Servo Motor supplier
Backup Solar Power Vehicle Barrier Gate Arm IP65 24V DC Servo Motor supplier Backup Solar Power Vehicle Barrier Gate Arm IP65 24V DC Servo Motor supplier

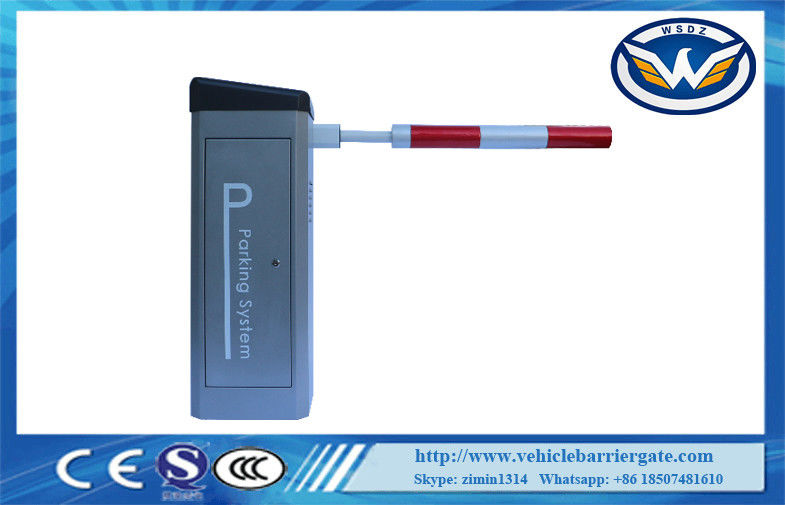

Large Image :  Backup Solar Power Vehicle Barrier Gate Arm IP65 24V DC Servo Motor

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description

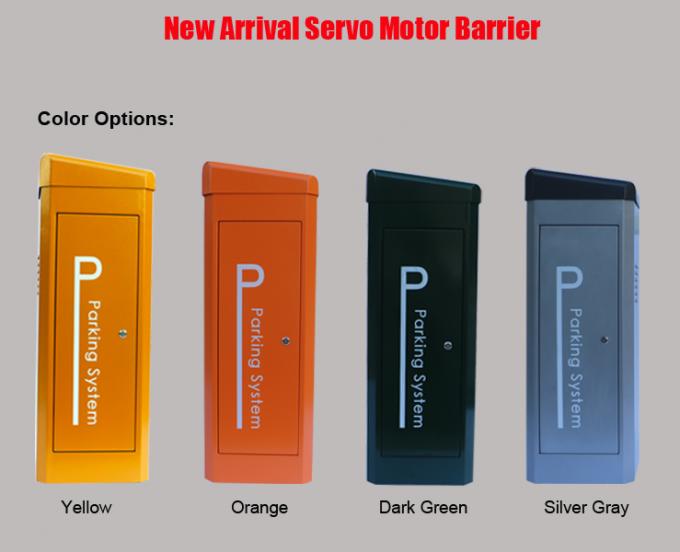

Housing Dimension: 335 * 285 * 926mm Color: Red-orange, Gray-black, Dark Green
Cabinet Material: 2.0mm Cold Roller Steel Plate Boom Type: Straight Arm, Folding Arm, Fence Arm, Optional
Operation Time: 0.3,0.6,0.9,2,4sec Product Name: IP65 24V DC Servo Motor Backup Solar Power Vehicle Barrier Gate

IP65 24V DC Servo Motor Backup Solar Power Vehicle Barrier Gate


Technical specifications:


ModelDZ-138 Vehicle barrier gate
arm length:2000mm-6000mm
opening and closing time:≤ 0.6s, 0.9s, 2s, 4s
Rated voltage:AC100V ~ AC264V, DC24V
Frequency:50Hz ~ 60Hz
Motor rated power:50W, the maximum power of 100W
Working environment temperature:-40 ℃ ~ 75 ℃
Power:standby ≤ 8W, run ≤ 100W
Dimensions (W * D * H):342 * 312 * 959mm
Lifetime:more than 10 million or 10 years
MTTR:<0.5 hours
MTBF:> 5 million times
Protection degree:IP65
Relative humidity:≤ 90%
Motor no-load speed:3000 r / min
Remote control distance:≤ 100 meters
Longest ARM length:6 meters
Output torque:0.86N.M * 140 = 120N.M.
running noise:< 50dB
Barrier N.W42.6kg
Machine core N.W22.1kg
Surface treatmentOutdoor metal powder, electrostatic spraying



Function Description:

1.When Power off, gate automatically open, no clutch design, no human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If
special requirement, manual operation is required when power off . Operating arm open and close by
hand also can be realized by setting up control board DIP switch, which ensure that the system can be
used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,
safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator
through the triple push button, software or remote control to issue a gate arm up, the gate will give priority
to the implementation of the opening action.

Backup Solar Power Vehicle Barrier Gate Arm IP65 24V DC Servo Motor


Each barrier will include:


1 pcs Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book



Best service for our customer:

Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.

Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
