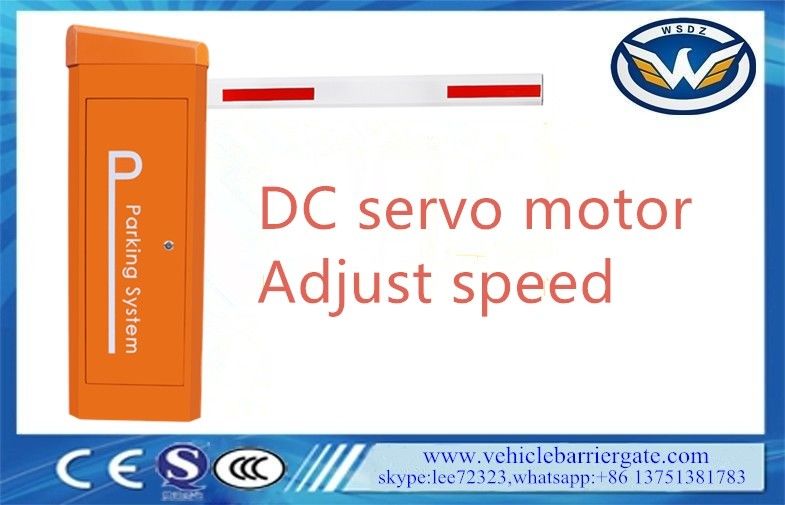

Large Image :  Extremely Fast Extensively Configurable Traffic Barrier Gate For Efficient Toll Processing

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-140

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: Extremely Fast Extensively Configurable Toll Barrier Gate For Efficient Toll Processing Motor Rated Power: 50W,Max 100W
Voltage: AC90V~AC264V,DC24V Protection Degree: IP65
MTTR: <0.5Hrs MTBF: >500 Million Operation Times

Extremely Fast Extensively Configurable Toll Barrier Gate For Efficient Toll Processing





For rapid toll processing


Rapid, reliable, and economical processing of road users is essential when collecting toll charges at bridges, tunnels and on roads. Toll Barriers from Magnetic have been specially designed for this situation. the barriers is characterised by its speed, lack of maintenance and energy efficiency, and thus keeps long-term costs down. The Toll Barriers can be adapted to meet individual requirements,the speed when closing can be adjusted.and it can be equipped with a variety of control devices, flanges and barrier booms. All barrier boom types can be provided with the optional swing-away flange. In the case of a collision with a vehicle, the barrier boom is released and can be manually re-engaged afterwards. This protects the barrier boom and the drive unit. There is also the optional auto-swing-away flange for the soft boom, which automatically re-engages after a collision with a vehicle.



Adance Functions:



1)Adopt DC24V permanent magnet synchronous motor (PMSMmotor) With such characteristics that self-locking when power on,unlock when power off.

2)Motor uses rare earth materials,low power consumption,light weight, low temperature rise,large torque,running normal below 40 degrees of ultra-low temperature environment.

3)Using the high precision planetary tooth structure reducer,convenient for left and right interchange,low noise,high efficiency,output large torque,not block,oil tight.Forced to lift the arm doesn’t damage the reducer.

4)The precision limit is exact in every particular,advanced constant torque intelligent follow-up algorithm.The torque output follows the arm differen to perating angle at constant speed,no shaking,keep fast and steady.Super fast response time algorithm.

5)Special HF power supply,arm can be opened automatically when power off,is general global  voltage standard,AC90V50/60Hz-AC264V  50/60Hz no municipal electricity place can be connected with DC24V battery for more than 8000 times.The battery can be connected with solar and wind power.





Technical Data

Arm Length Max6M
Opening And Closing Time 0.3S,0.6S,0.9S,3S,4S
Rated Voltage AC100V~AC264V,DC24V
Frequency 50Hz~60Hz
Motor Rated Power 50W,Max 100W
Working Environment -40 ℃ ~85 ℃
Power Standby≤8W,run≤100W
Housing Size(H*W*H*W) 342*312*959*2mm
Lifetime More than 10 million operation time or 10 years
MTTR <0.5Hrs
MTBF >500 million operation times
Protection Degree IP65
Relative Humidity ≦ 90%
Motorno-load speed 3000r/min
Remote Distance ≦ 100m
Output Torque 0.86N.M*140=120N.M
Running Noise: <60dB
Net Weight 42.6KG




Functions & Features:

  1. When Power off,gate automatically open,no clutch design,no human intervention.When power on,gate automatically reset,restore to the gate closing state,truly unattended,fire safety standards.If special requirement,manual operation is required when power off.Operating armopen and close by hand also can be realized by setting up control board DIP switch,which ensure that the system can be used at anytime.
  2. The use of Single Balance Spring device,good regulation,no noise,indefatigable,not easy to break,safe and reliable.
  3. A variety of input and output modes can be selected,normally open normally closed optional.
  4. Arm opening angle can be adjusted from 60 to 90 degrees,10 degrees resolution,suitable for eaves prominent place to install
  5. Barrier gate up & down sign alrelay switch output.
  6. Barrier gate running state:OK signal output indicating that the gate is working properly.
  7. Barrier gate operation abnorm alalarm signal output.
  8. Traffic light relay switch signal output.
  9. External loop detector signal anti-smashing interface,infrared sensor signal anti-smashing interface. Countmodeinterface.
  10. Arm Open priority anti-smashing function,regardless of the current gate in what state,the operator through the triple push button,software or remote control to issue a gate arm up,the gate will give priority to the implementation of the opening action.
  11. Barrier with anti-collision protectionfunction,when the vehicle hits the gate arm,arm can be swing out to avoid damage to the vehicle and barrier gate machine​.



Extremely Fast Extensively Configurable Traffic Barrier Gate For Efficient Toll Processing

Extremely Fast Extensively Configurable Traffic Barrier Gate For Efficient Toll Processing



Each barrier will include:



1 pcs Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book


Warranty:


1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
